Wind Turbine 400W 24V Generator

Introducing the Horizontal Wind Turbine Generator: Harnessing Nature's Power for Sustainable Energy

Embrace a greener future with our Horizontal Wind Turbine Generator. Engineered for superior efficiency and performance, this turbine generator is integral to wind and solar hybrid systems, providing an economical solution for your energy needs. Please note, Wind Turbine Poles are not included in this price.

Product Features:

• Low Start-Up Speed: Engineered for maximum efficiency, the turbine operates at low start-up speeds, suitable for various wind conditions. Choose between 3 or 5 blades to optimize performance.
• Easy Installation: Benefit from straightforward installation with optional tube or flange connections, ensuring flexibility in setup.

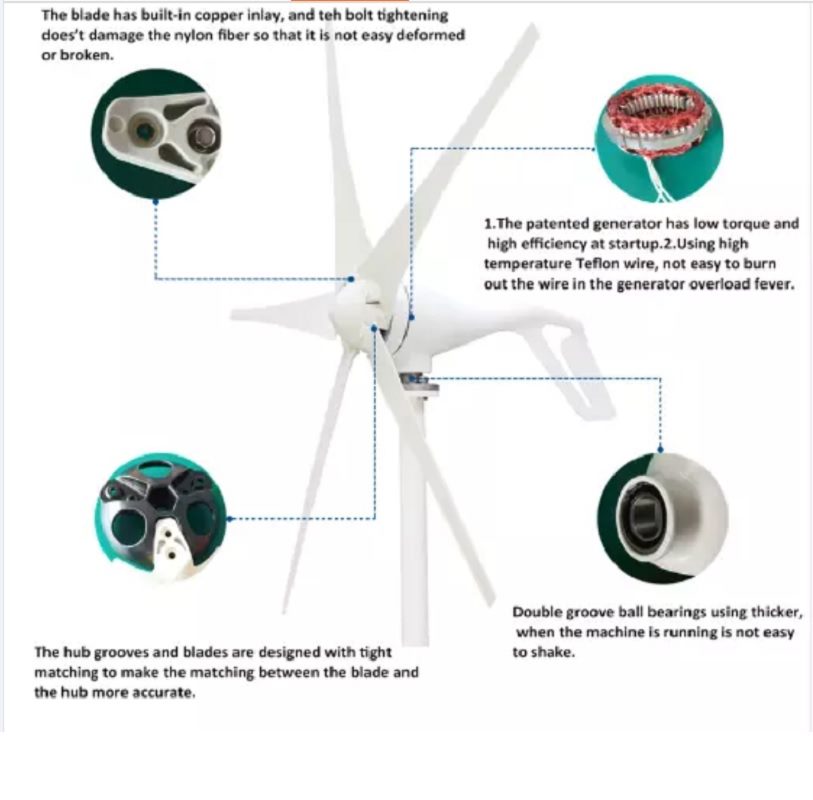

• Precision Injection Molded Blades: Featuring precision injection-molded blades with optimized aerodynamic shapes, enhancing wind energy utilization for maximum annual output.
• Durable Construction: The turbine body, made from casting aluminum alloy, ensures durability. Equipped with 2 bearings for swiveling, it withstands strong winds safely.
• Patented Permanent Magnet AC Generator: The specialized stator in the patented generator reduces torque, ensuring seamless operation between the wind wheel and generator for enhanced system performance.

Specifications:

• Rated Power: 400W
• Rated Voltage: 24V
• Start-Up Wind Speed: 2.5m/s
• Rated Wind Speed: 12m/s
• Survival Wind Speed: 55m/s
• Blades Material: Nylon Fiber
• Blades Number: 5

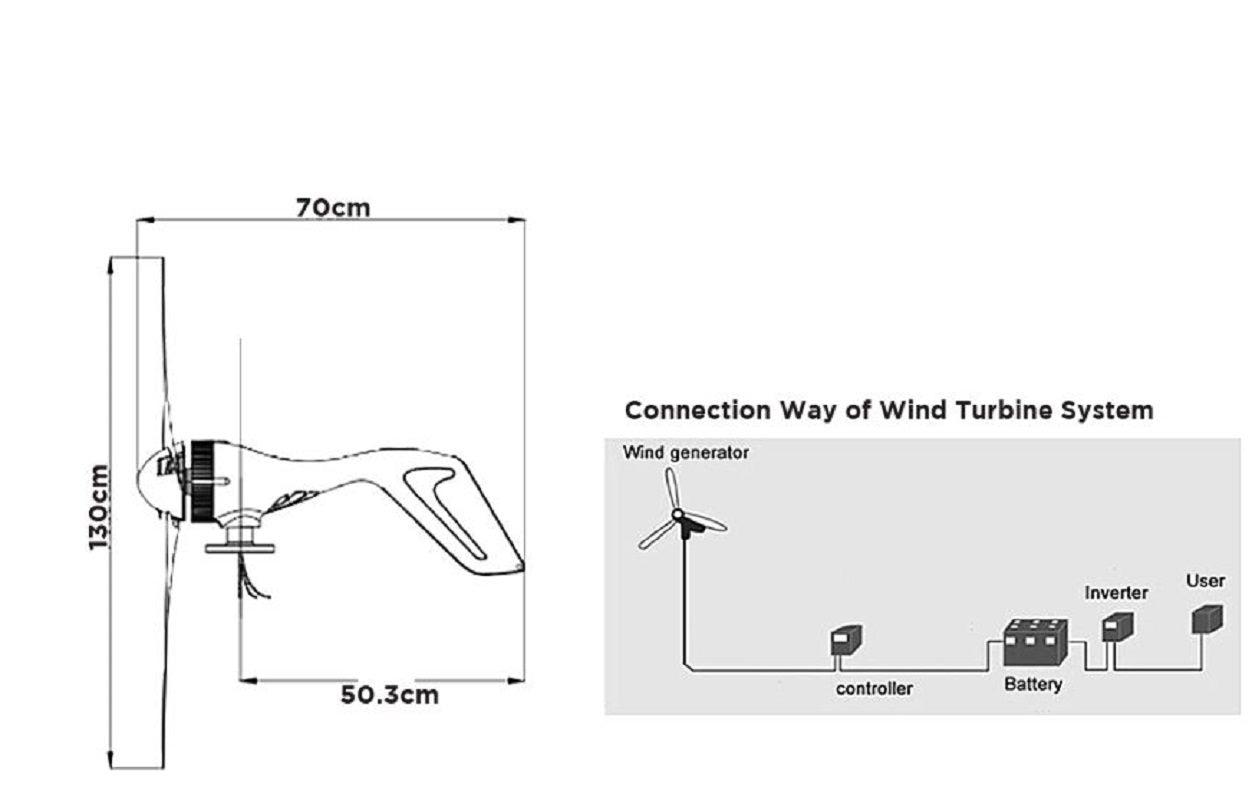

• Wheel Diameter: 1.25m
• Body Material: Aluminum Alloy
• Top Net Weight: 7.5kg
• Generator: Three-Phase Permanent Magnet AC Synchronous Generator
• Magnet Material: NdFeB
• Control System: Wind Wheel Turbine
• Speed Regulation: Automatic Windward Direction Adjustment
• Working Temperature: (-40°C) - (80°C)
• Color: White

Packaging Content:

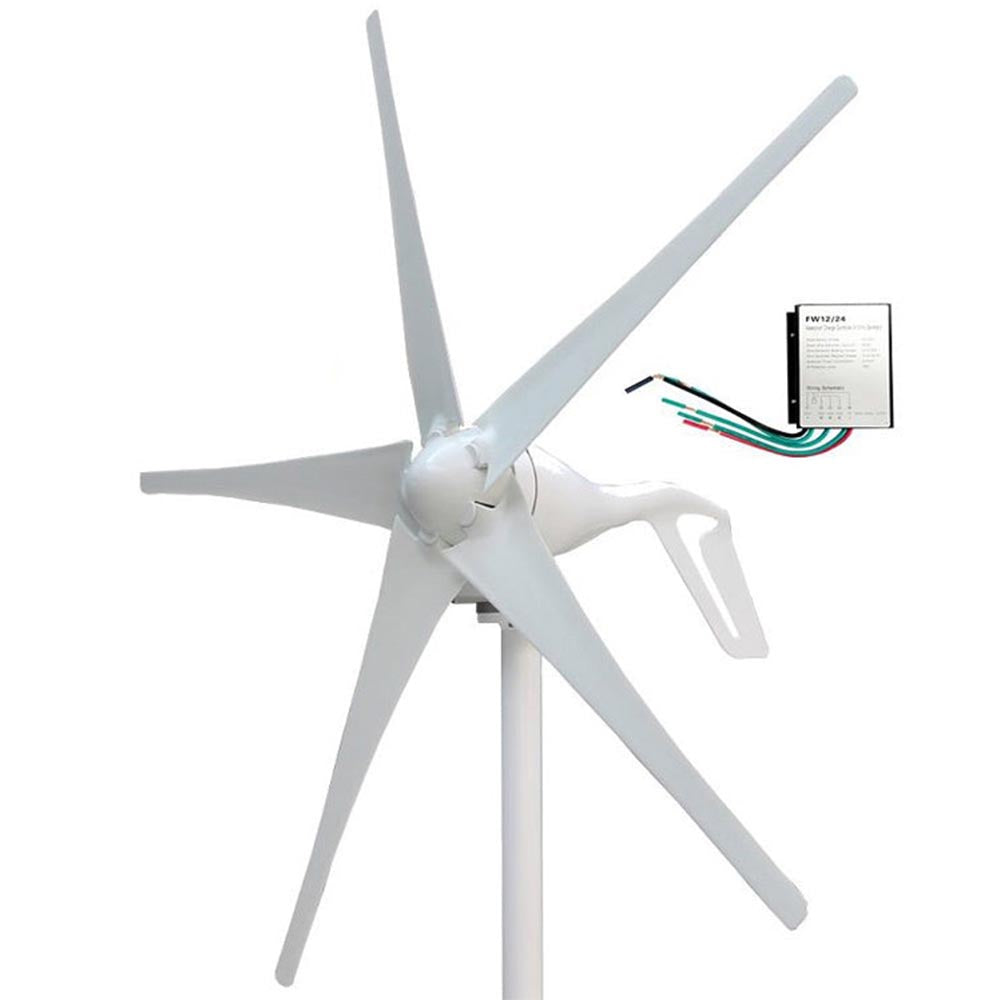

• 1x Wind Turbine Generator
• 5x Blades

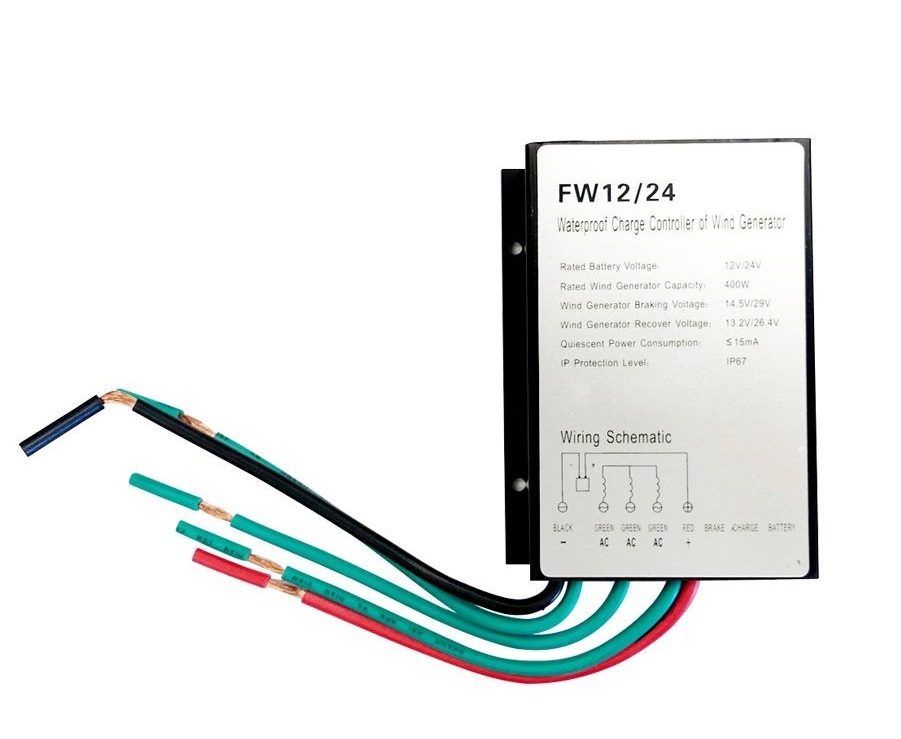

• 1x Charge Controller

Harness the force of nature with the Horizontal Wind Turbine Generator, offering an eco-friendly approach to wind energy. With a focus on efficiency, durability, and easy installation, this generator is a powerful tool in shaping a sustainable future.
