JA200: (2.0HP),
Feature:
LX Whirlpool bath pump: JA series hot tub SPA bathtub pump is most mature product. Liquids part is made of high reinforce engineering plastic; Applied mechanical seal type ensure watertight in long-time continuous operation. The liquid will be drained once motor is off.
Motor: Air cooling motor is suitable for Europe. Motor frame and base is conjoined with material of aluminum; Motor is under low-noise and less-vibration and durability that are specialized for hydro massage bathtub or SPA pump. Insulation class f, protection ipx5, continuous duty; Single-phase with thermal protector from t1 to ensure safety and convenience. Pneumatic switch control is available.
Application:
1. It's suitable for hydro massage tube or SPA system and circulation or filter of swimming pool system.
2. It's used to transmit and cycle sea-water for fish pond water which is a preferred sea-water pump.
3. Weak corrosive liquid (weak acid and weak) without solid granules. Liquid temperature: +5-60c
4. It's suitable for circulating water equipment that use for workshop's cooling-down.
Specifications:
Model: JA200
Inlet & Outlet: including 2 barrel unions
Suitable for 1-1/2"/40mm PVC pipe installation (OD 48.3mm)
Power: 2.00HP 1500W
Voltage: 230VAC
Frequency: 50HZ
Max. Head: 16m
Capacity: 450L/min 27000L/H

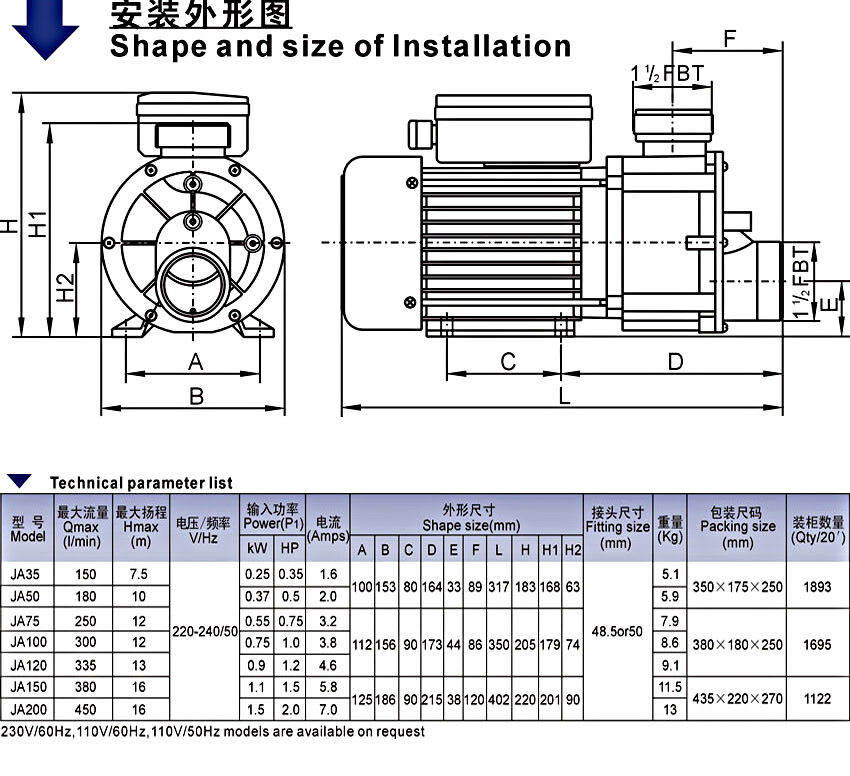

Dimensions: L435mmxW220mmxH245mm
-The pump is most suitable for hydromassage bathtub, hot tub, spa pool, swimming pool and whirlpool
-Pump apply for low noise standard motor. Single-phase with thermal protector from TI,USA.
-Motor with high temperature bearings, long operating life with reliability and durability.
-Complete separation of water and the axis, safe and reliable
-Optional pneumatic switch, to ensure ease of use, security.
-Insulation class F, Protection IPX5.
-The pump obtained the certification of CE,TUV, SAA.
