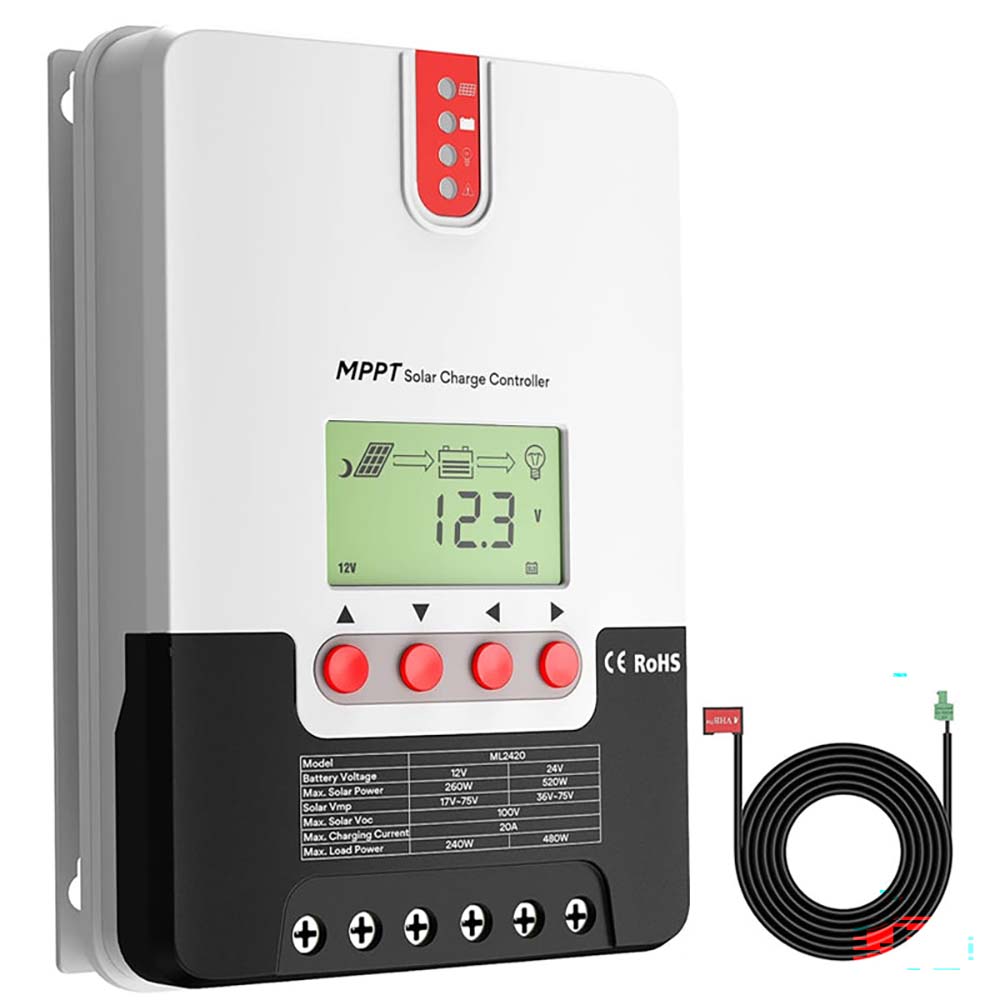

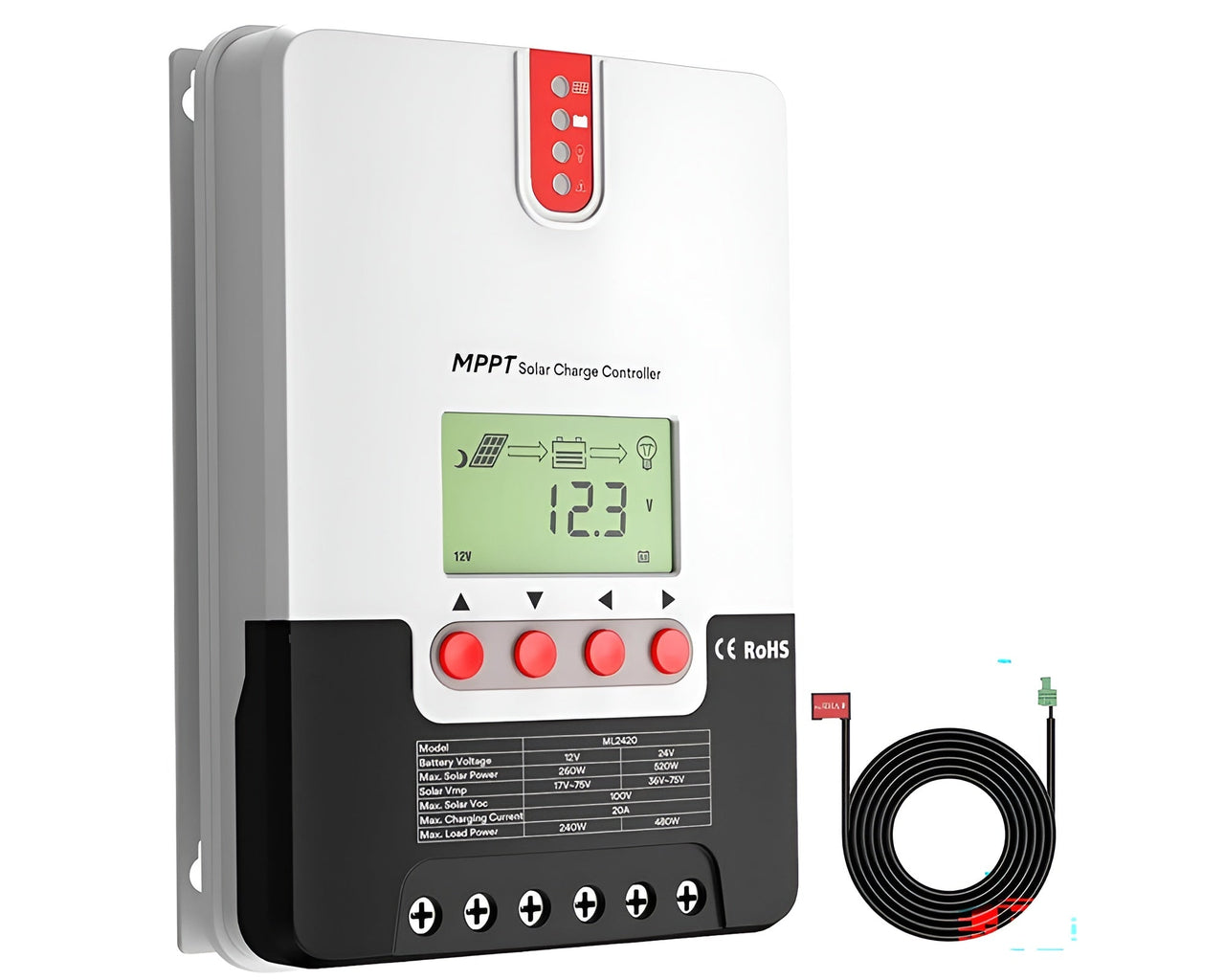

MPPT Solar Controller 30A

Optimize Your Solar Power System with Bateria Power 30A MPPT Solar Charge Controller

Key Features:
Efficient Solar Tracking Technology:
The Bateria Power 30A MPPT solar charge controller utilizes advanced MPPT technology, boasting a tracking efficiency of no less than 99.99% and a peak conversion efficiency of up to 98%. This ensures maximum utilization of solar energy, optimizing your system's output.
Comprehensive System Protection:
Equipped with self-diagnostic capabilities, this controller offers comprehensive protection against reverse polarity, battery overcharging, over-discharging, overload, short-circuiting, and reverse current. Your solar system stays safe and secure under its watchful eye.
4-Stage Smart Charging:
Experience smart charging with 4-stage charging for Lead Acid Batteries (Bulk, Absorption, Float, and Equalization) and 2-stage charging (Bulk and Absorption) for Lithium batteries, including Lithium Reactivation. It ensures efficient and safe charging for various battery types.
Wide Battery Compatibility:
This controller supports 12V/24V systems and offers a LiFePO4 battery charging mode, simplifying the process of charging LiFePO4 batteries. Additionally, it is compatible with SEAL, GEL, Flooded, LifePO4, and Li(NiCoMn)O2 battery types.

Specifications:

• System Voltage: 12/24V
• Maximum Solar Open Circuit Voltage (V.O.C): 100VDC
• Maximum Solar Voltage (V.M.P): 75VDC
• DC-DC Conversion Frequency: 40kHz
• Solar Input Power:
• 12V Battery Bank: 400 Watts
• 24V Battery Bank: 800 Watts
• Rated Charge Current: 30Amps
• Rated Load Current: 20Amps
• Operating Temperature: -35°C to +45°C
• Protection Degree: IP32
• Communication Method: RS232
• Dimensions: 238mm x 173mm x 72mm
• Weight: 2kgs

Package Contents:

• 1 x 30A MPPT Solar Charge Controller
