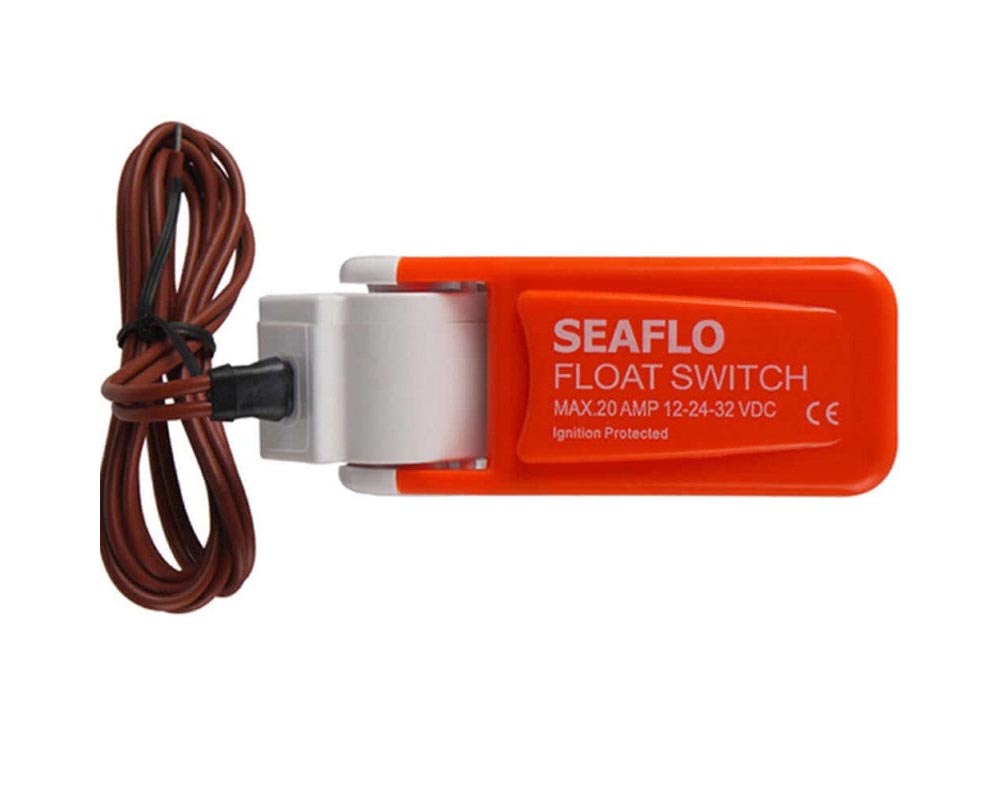

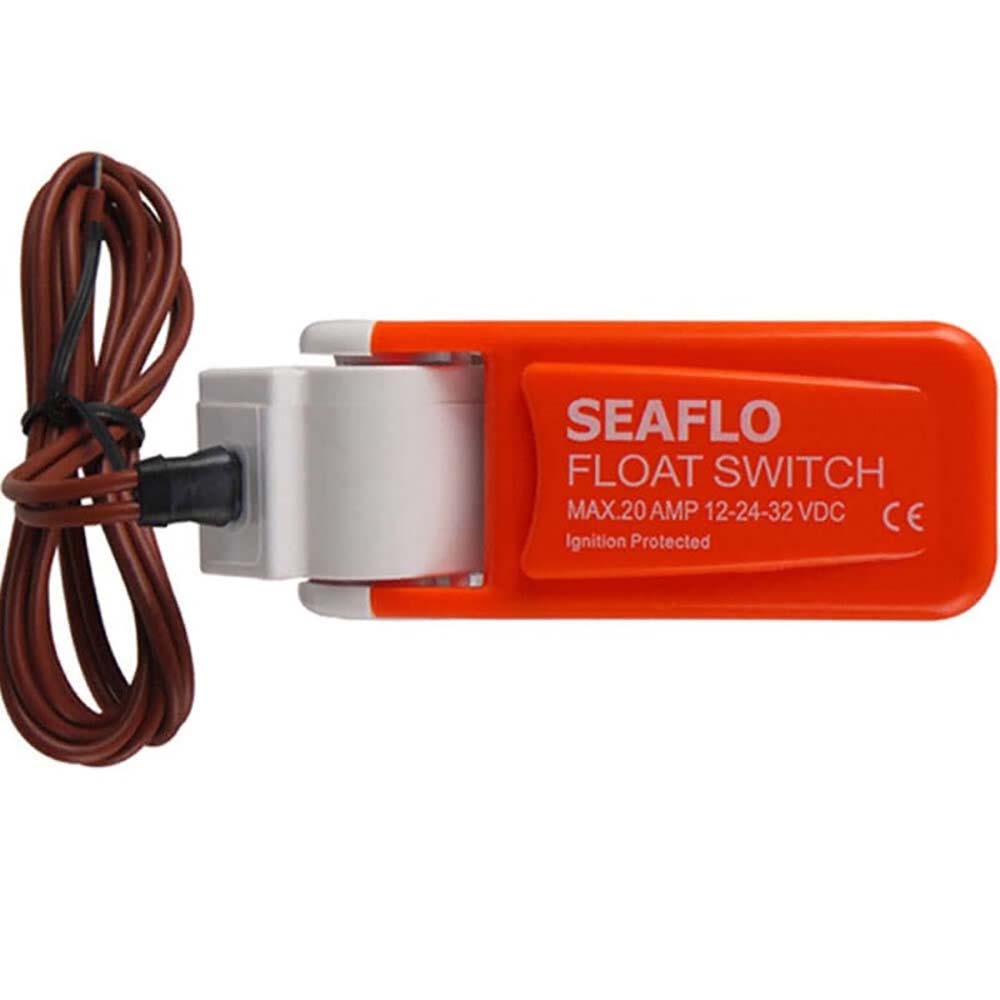

Seaflo 20A Mini Float Switch for Submersible Pump

Seaflo 20A Mini Float Switch for Submersible Pump

Seaflo 20A Mini Float Switch for Submersible Pump

Enhance the efficiency and reliability of your bilge pump system with the Seaflo 20A Mini Float Switch. Designed for 12V to 32V applications, this switch activates your pump automatically upon detecting water, making it ideal for marine and other watercraft uses. It features a non-mercury design for environmental safety and includes heavy-duty nylon housing with water-tight seals for rustproof and corrosion-resistant performance.

Key Features

• Automatic Activation: Activates pump when water level reaches 2" (51mm) and deactivates at 3/4" (19mm).
• Environmentally Friendly: Non-mercury switch for ecological safety.
• Ignition Protection: Safely operates in marine environments.
• Durable Construction: Heavy-duty nylon housing with moisture-tight seals.
• Easy Installation and Maintenance: Includes a removable snap-on base for convenient fitting, servicing, and cleaning.
• Silent Operation: Provides quiet and vibration-less performance.
• Application: Suitable for 12V to 32V bilge pumps with a maximum of 20 Amps.

Specifications

• Model: SFBS-20-01
• Max Amps (12 Volts): 20 A
• Max Amps (24 Volts): 10 A
• Wire Lead: 3'
• Wire Gauge Size: 18AWG
• Net Weight (N.W.): 0.16 kg
• Gross Weight (G.W.): 0.18 kg

Packaging Content

• 1 x Seaflo 20A Mini Float Switch for Submersible Pump

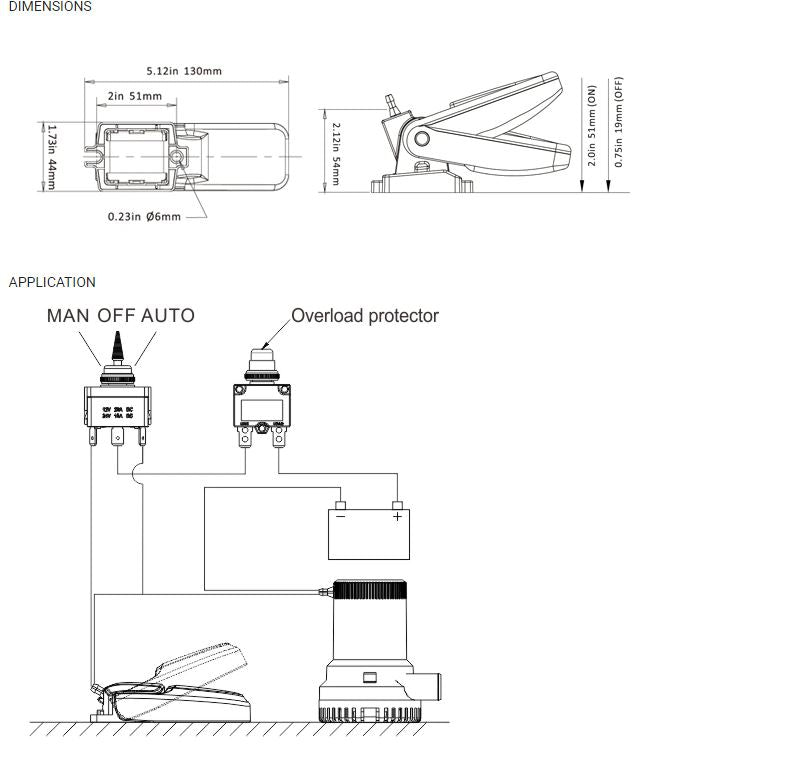

• Instruction Manual and Wiring Diagram included
