Monocrystalline Solar Panel 50W 12V with controller and mount

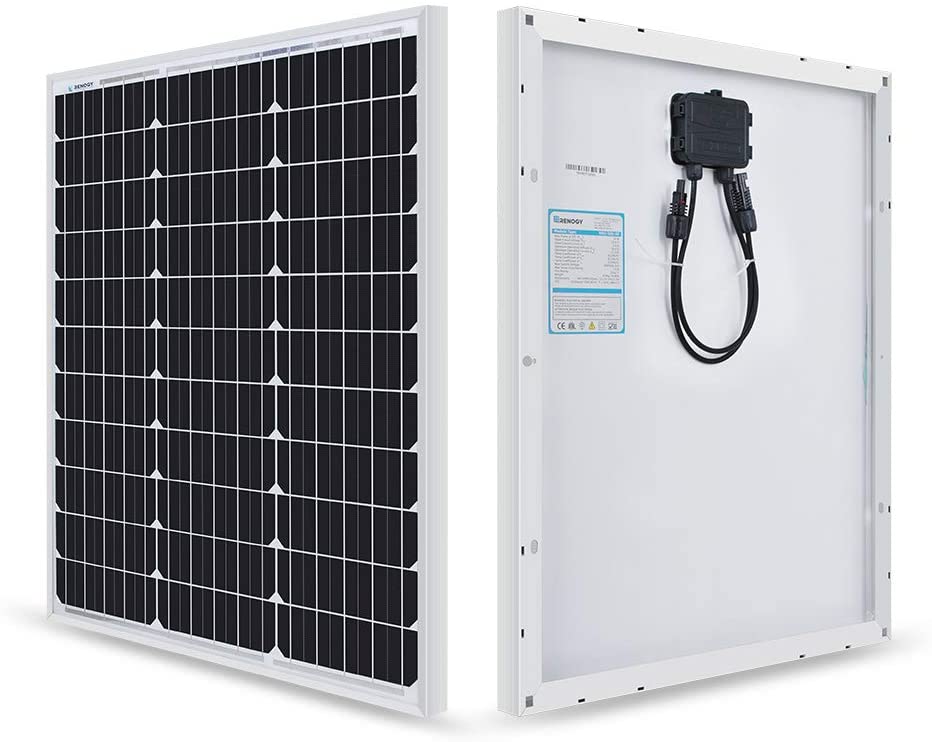

50 Watt 12 Volt Monocrystalline Solar Panel (Compact Design)

This 50 Watt 12 Volt Monocrystalline Solar Panel offers a reliable and efficient solution for various solar energy applications. Its compact design, durability, and advanced features make it ideal for both on-grid and off-grid systems.

Features:

• Reliable Performance: Advanced encapsulation material with multi-layered sheet laminations enhances cell performance and ensures a long service life. EL tested solar modules guarantee no hot-spot heating. Bypass diodes minimize power drop caused by shade, ensuring excellent performance in low-light environments. TPT back sheet ensures smooth performance over time.
• Durable Construction: Positive output tolerance (0-3%) withstands high winds (2400Pa) and snow loads (5400Pa). Corrosion-resistant aluminum frame extends outdoor use, ensuring longevity. Anti-reflective, high transparency, low iron-tempered glass offers enhanced stiffness and impact resistance. IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets.
• Versatile Application: Suitable for various applications, including ground mount compatibility. Compatible with both on-grid and off-grid inverters.
• Installation Ready: Pre-drilled holes on the back of the panel allow for fast mounting and securing. Includes pre-drilled holes for grounding. Compatible with various Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts.

Specifications:

• Waterproof: IP65
• 3.2mm tempered glass
• Max Power (Pmax): 50W +/- 3%
• Max Power Voltage (Vmp): 17.5V
• Max Power Current (Lmp): 2.85A
• Open Circuit Voltage (Voc): 21.6V
• Short Circuit Current (Isc): 3.23A
• Max System Voltage: 1000V
• Max Series Fuse: 10A
• Standard Test Condition: E=1000W/m², Tc=25°C, AM1.5
• Nominal Operating Cell Temp (NOCT): 47 +/- 2°C
• Field Connections: Use minimum no.11 AWG copper wires insulated for a minimum 90°C
• Size: 640*570*30mm
• Weight: 4kg

Packaging Content:

• 1 x High-Efficiency 50W Solar Panel Mono Crystalline
• 1 x 20A Solar Controller
• 1 x Mount
