Bearing Removal Tool Kit Remove Install Extract Bushes Bearings

Universal Press & Pull Sleeve Kit

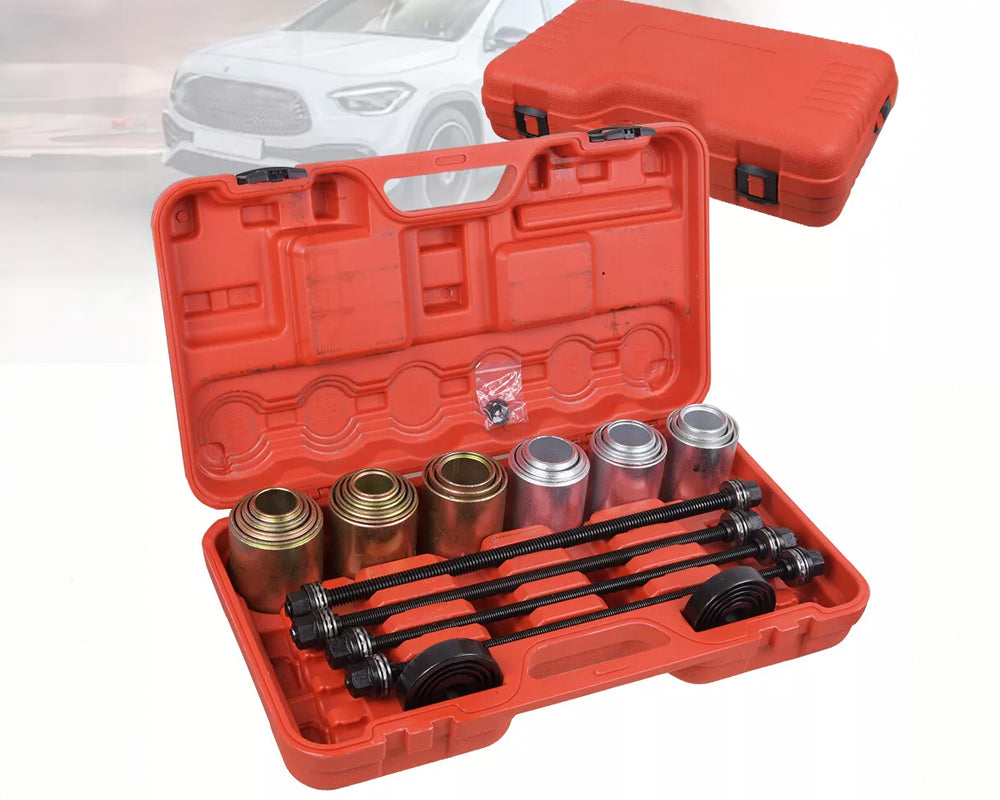

Universal Press & Pull Sleeve Kit Remove Install Extract Bushes Bearings 26pc Car Universal Bush Bearing Removal Tools Set Press Pull Sleeve Kit

Efficiently remove and install wheel bearings, suspension bushes, and seals with the Universal Press & Pull Sleeve Kit. This comprehensive 26-piece set includes press sleeves, pulling spindles, and force screws to tackle a wide range of automotive tasks. Ideal for preventing damage to bearing housings, it features hardened and tempered components for durability. The kit comes in a blow-molded case for easy organization and transport, making it a professional-grade solution for workshop and on-site repairs.

Features

• Comprehensive Kit: Includes tools for in situ removal/installation of bearings, bushes, and seals.
• Damage Reduction: Minimizes risk of damaging bearing and suspension housings during use.
• Versatile Usage: Can be used with a workshop press when access is limited.
• Durable Construction: Hardened and tempered components ensure longevity and reliability.
• Professional Quality: Designed for professional and DIY automotive enthusiasts alike.
• Organized Storage: Comes in a blow-molded plastic case for convenient storage and transportation.

Specifications

• Sleeve Wall Thickness: 5mm
• Sleeve Height: 94mm
• External Sleeve Diameter: 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82mm
• Sleeve End Caps: 83 x 20mm
• Force Screw Threads: 10 x 1.5, 12 x 1.5, 14 x 1.5, 16 x 1.5mm
• Force Screw Length: 450mm

Package Contents

• 20 x Press Sleeves, Inside Diameter from 34-72mm in 2mm steps, Outside Diameter from 44-82mm in 2mm steps
• 4 x Pulling Spindles with nuts and thrust bearings (M10, M12, M14, M16)
• 2 x Press Plate
• 1 x Carry Box
