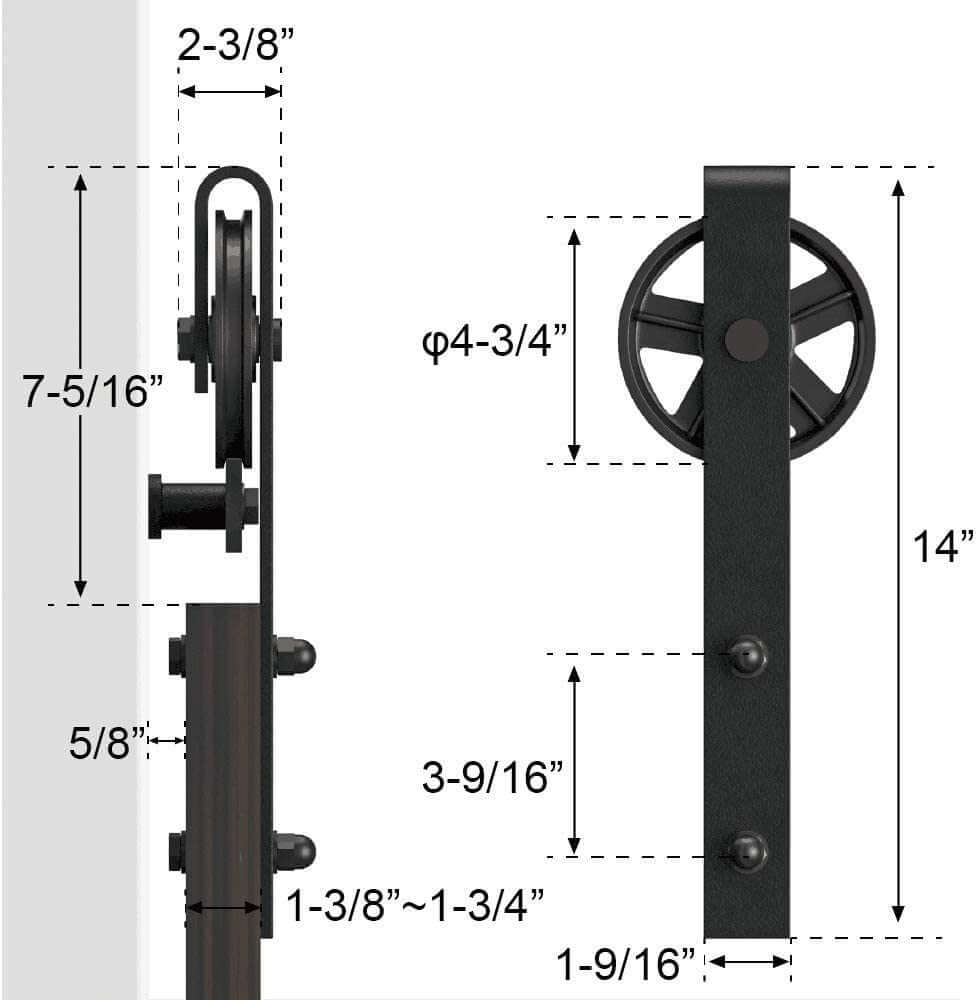

Product Specifications

• Material: High-quality raw steel castings
• Track Thickness: 6mm
• Maximum Load: 330 pounds
• Suitable Door Weight: 220 pounds
• Suitable Door Panel Thickness: 4-4.5cm

Installation Requirements

• The distance from the top of the hardware to the ceiling should be at least 16cm.
• Baseboard thickness should be 2cm.
• Door thickness should be between 4 and 4.5cm.
• Ensure the wall can bear the weight of the hardware installation.

Orbit Calculation Method

• Single Door: Track length = Door width x 2 + 10 cm
• Track length = Opening x 2 + 20 cm
• Double Doors: Track length = Door width x 4 + 20 cm
• Track length = Door opening width x 2 + 20 cm

Installation Tools Required

• Impact drill
• Spirit level
• Tape measure
• Socket wrench
• Hammer
• Pencil
• Screwdriver

Important Notes

This hardware kit includes only the necessary components for installation; door panels are not included. The track and wall connectors are pre-fixed on the track, and their positions are not adjustable. This hardware is designed for interior use only.

Please ensure the bottom of the door is prepared with an opening size of 20mm x 7mm before installation.

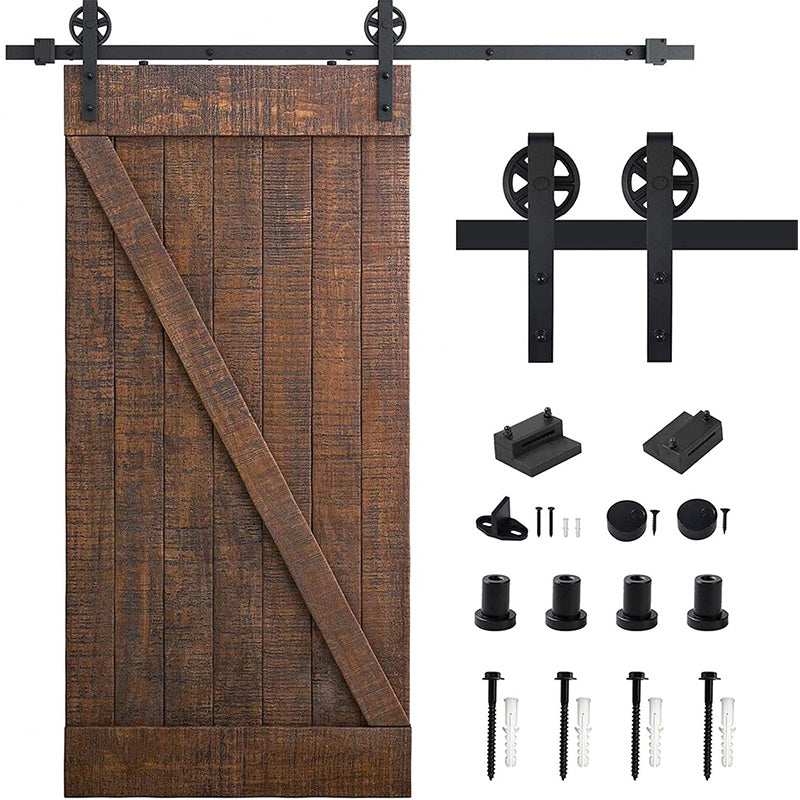

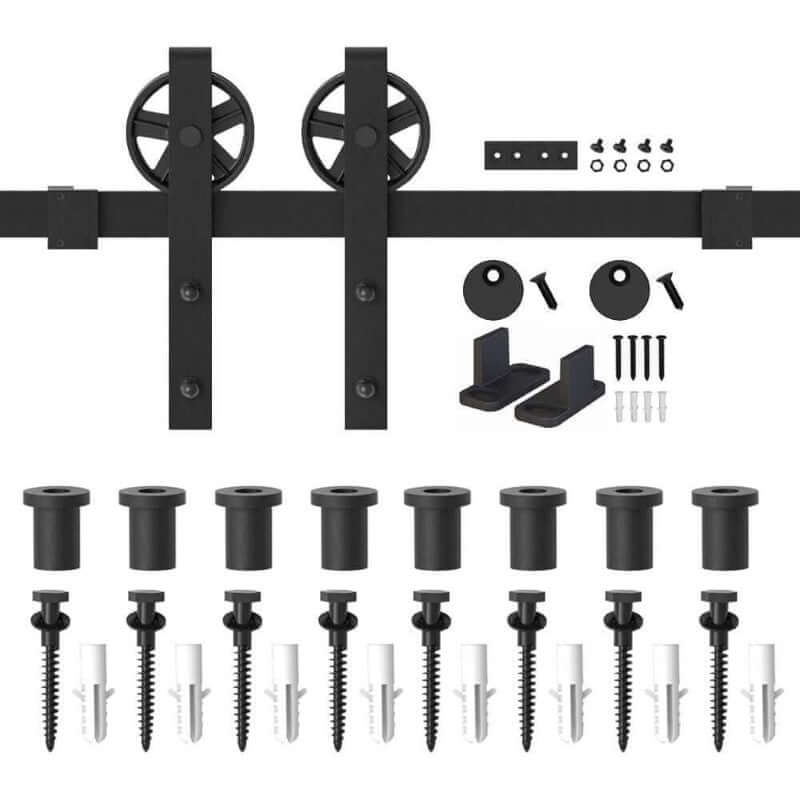

Package Includes

• 1 x Barn Door Hardware Set
• 1 x Instruction Manual
