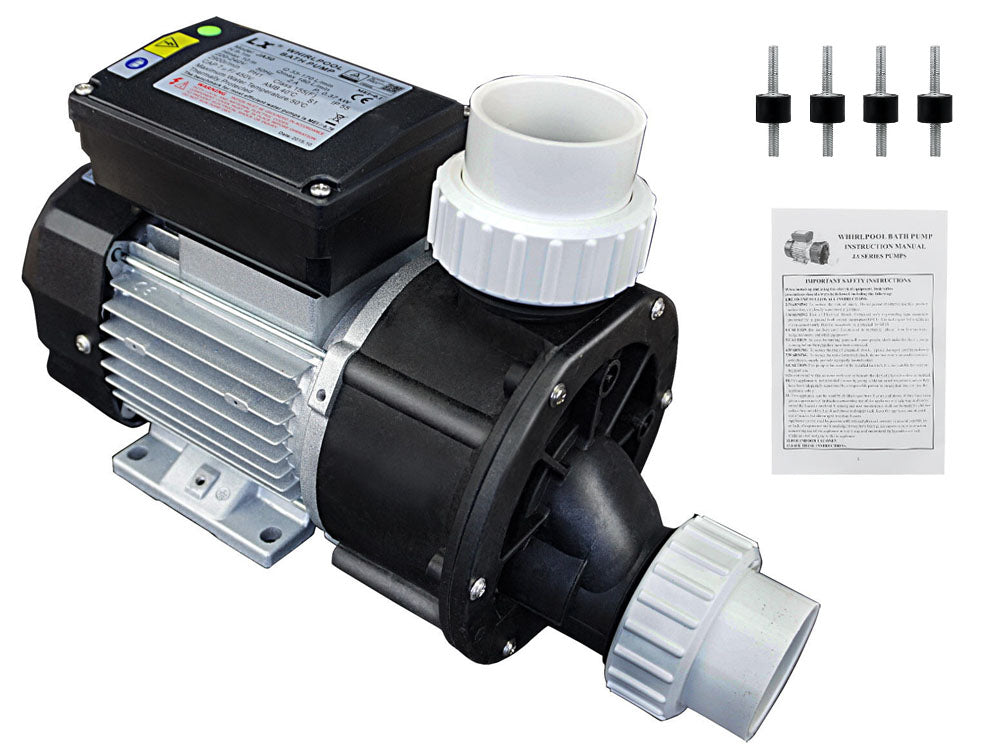

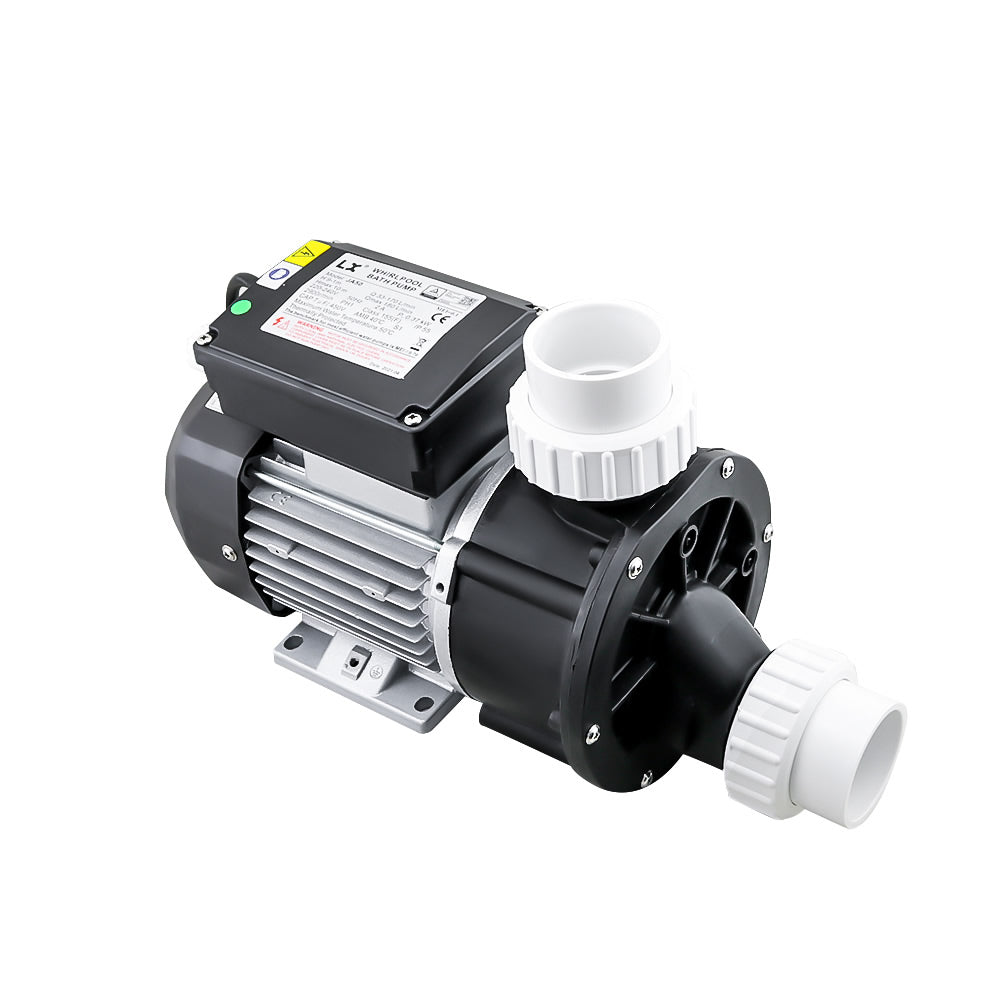

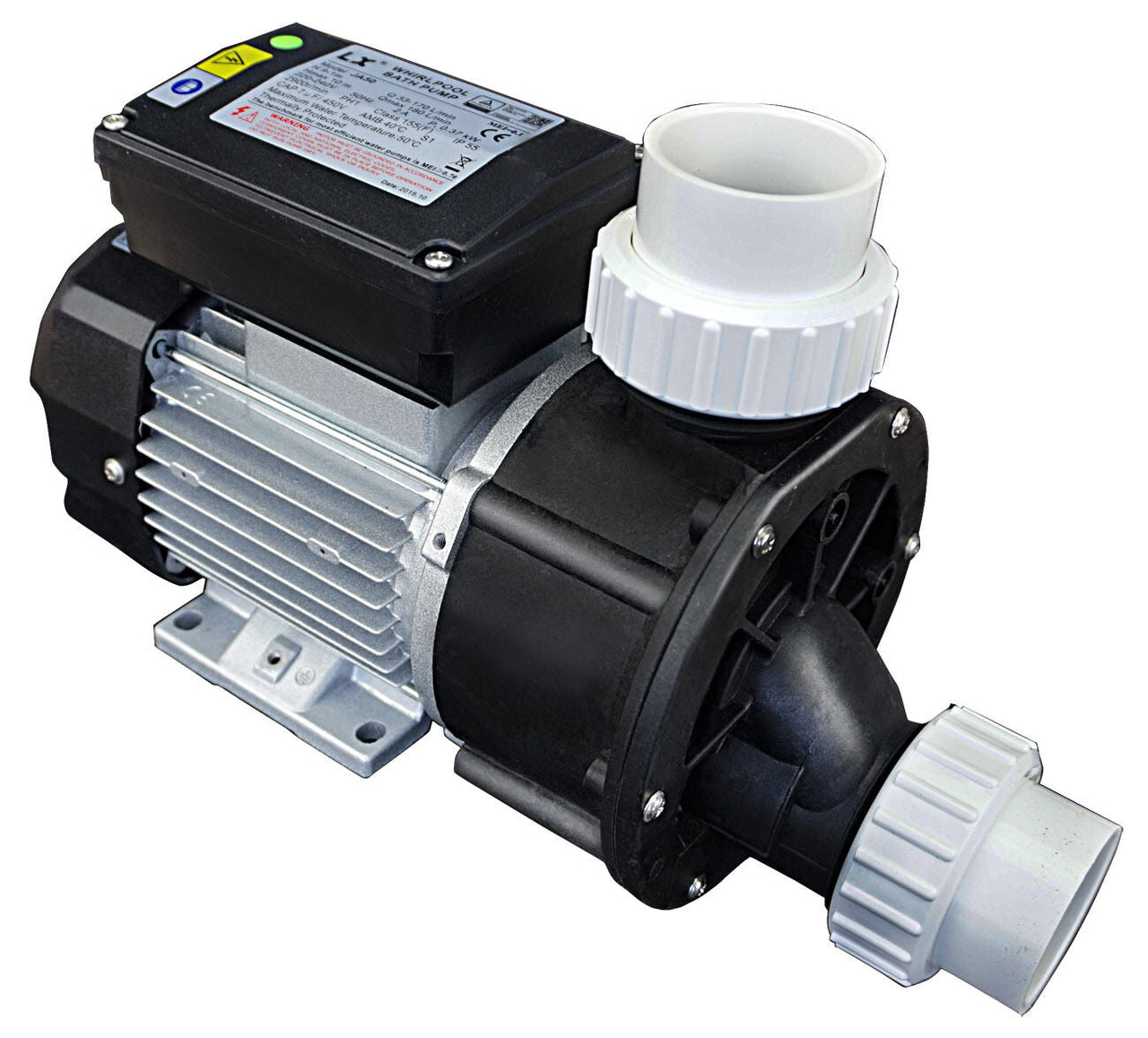

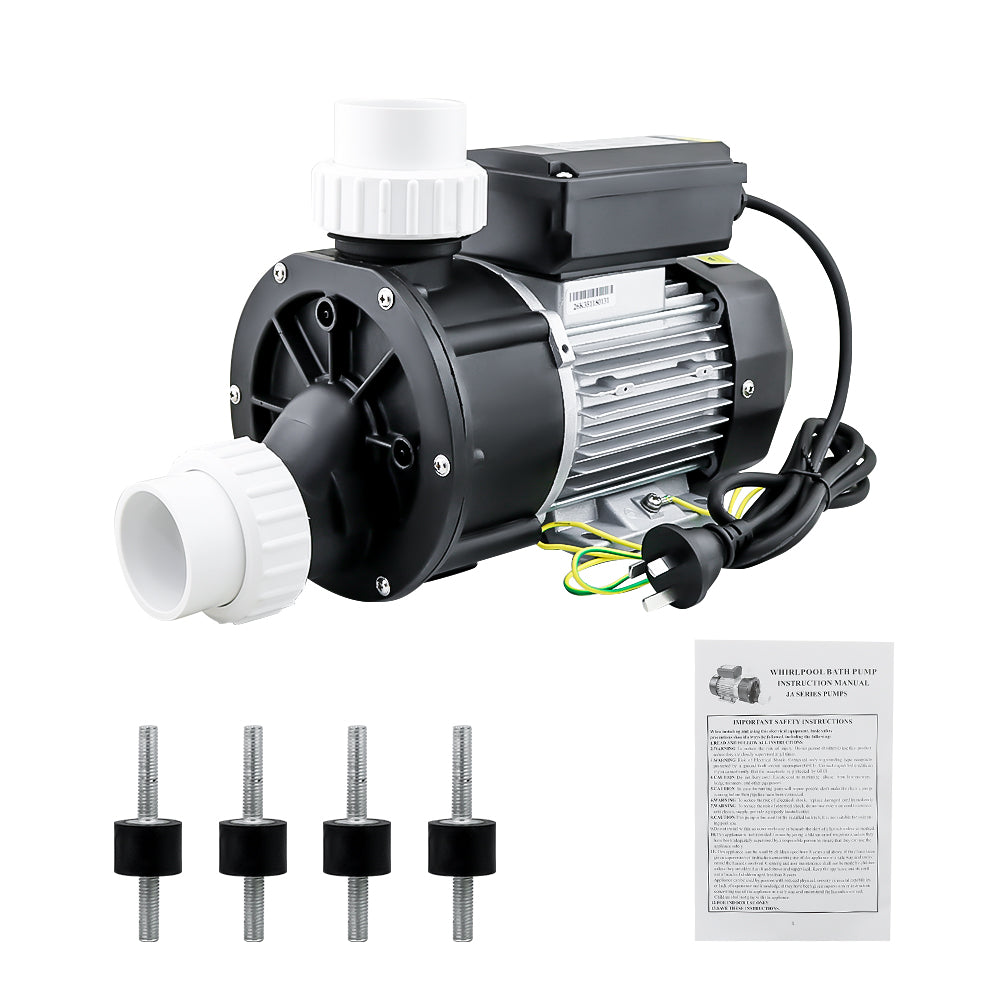

JA50: (0.5HP/230V/50Hz), SPA Pool Pump
Feature:
LX Whirlpool bath pump: JA series hot tub SPA bathtub pump is most mature product. Liquids part is made of high reinforce engineering plastic; Applied mechanical seal type ensure watertight in long-time continuous operation. The liquid will be drained once motor is off SPA Pool Pump .
Motor: Air cooling motor is suitable for Europe. Motor frame and base is conjoined with material of aluminum; Motor is under low-noise and less-vibration and durability that are specialized for hydro massage bathtub or SPA pump. Insulation class f, protection ipx5, continuous duty; Single-phase with thermal protector from t1 to ensure safety and convenience.
Application:
1. SPA Pool Pump Suitable for hydro massage tube or SPA system and circulation or filter of swimming pool system.
2. Used to transmit and cycle sea-water for fish pond water which is a preferred sea-water pump.
3. Weak corrosive liquid (weak acid and weak) without solid granules. Liquid temperature: +5-60c
4. Suitable for circulating water equipment that use for workshop's cooling-down.

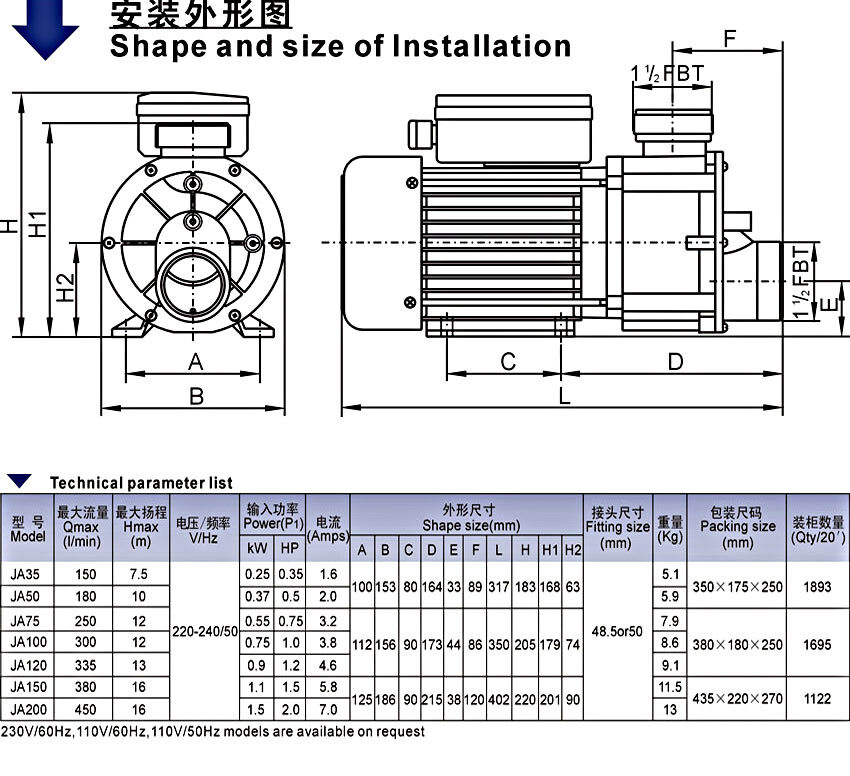

Specifications:
Model: JA50
Inlet & Outlet: including 2 barrel unions
Suitable for 1-1/2"/40mm PVC pipe installation (OD 48.3mm)
Power: 0.50HP 370W
Voltage: 230VAC
Frequency: 50HZ
Max. Head: 10m
Capacity: 180L/min 10800L/H
Dimensions: L350mmxW175mmxH250mm
-The pump is most suitable for hydramassage bathtub, hot tub, spa pool, swimming pool and whirlpool SPA Pool Pump
-SPA Pool Pump Pump apply forlow noise standard motor. Single-phase with thermal protector from TI,USA.
-Motoris with high temperature bearings, long operating life with reliability and durability.
-SPA Pool Pump Complete separation of water and the axis, safe and reliable
-Optional pneumatic switch, to ensure ease of use, security SPA Pool Pump .
-SPA Pool Pump Insulation class F, Protection IPX5.
-The pump obtained the certification of CE,TUV, SAA SPA Pool Pump .
