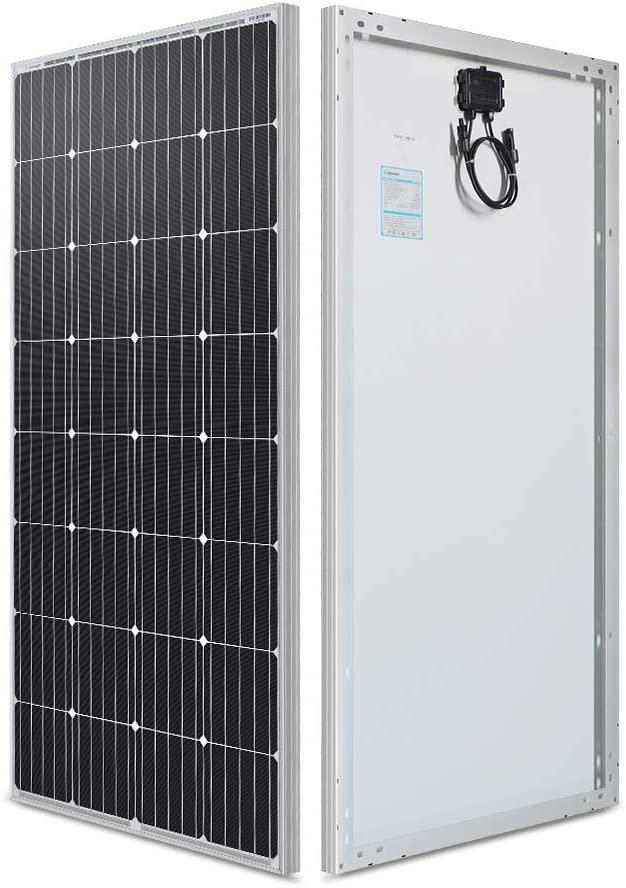

150W Monocrystalline Solar Panel Mono Solar Panel 150W with controller
Product Overview:
The 150W Monocrystalline Solar Panel is designed for high efficiency and durability, utilizing A-grade Trinasolar cells to maximize energy output. With advanced features for weather resistance and shading protection, this panel is ideal for a variety of applications, including residential, commercial, and off-grid setups.
Key Features:
-

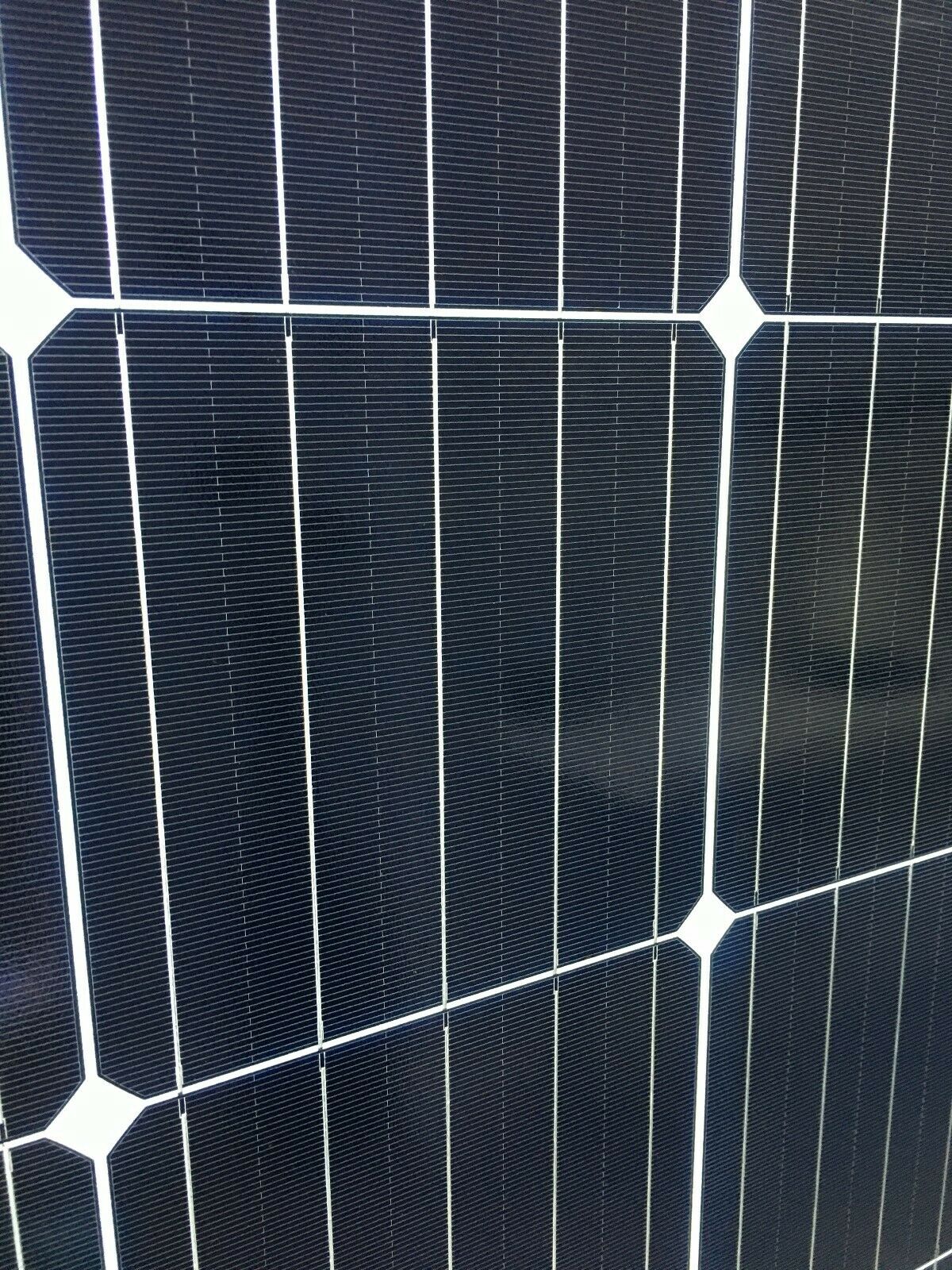

High Efficiency: Manufactured with high-efficiency mono-crystalline cells that provide a cell efficiency of 20.50%.
-

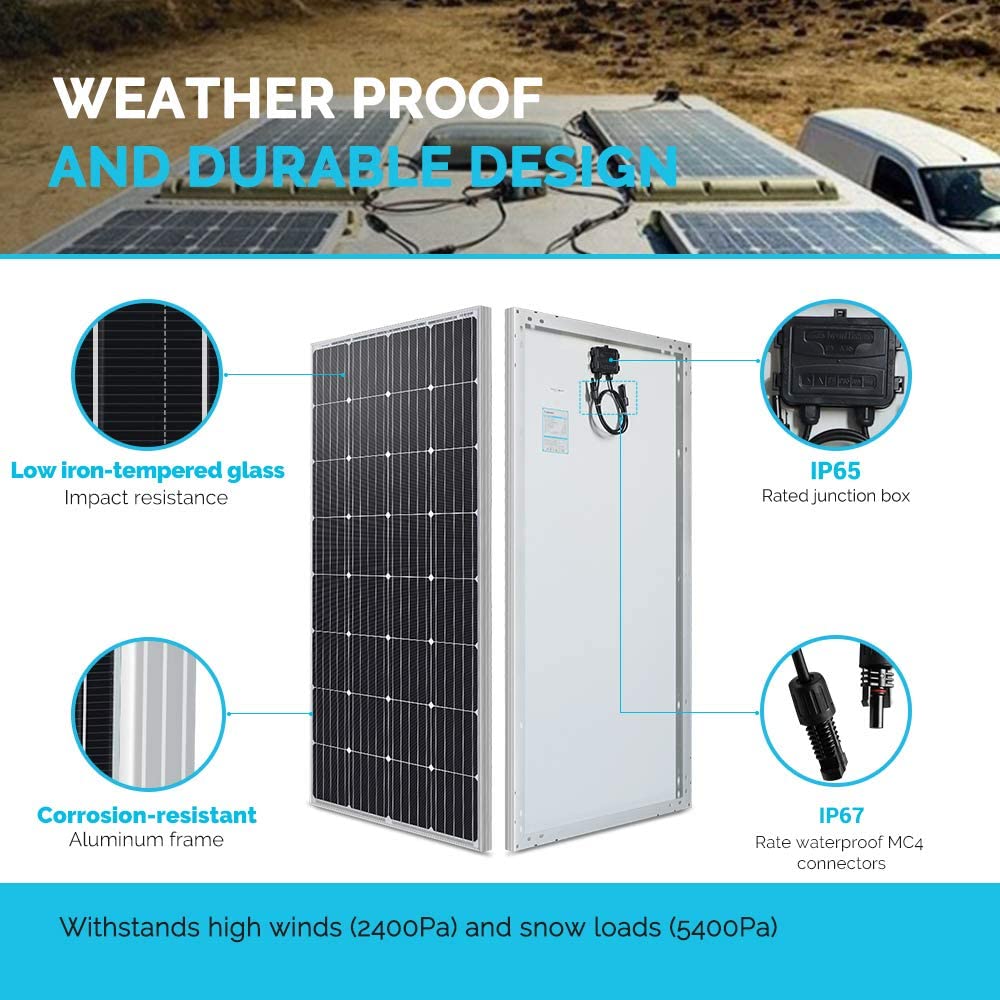

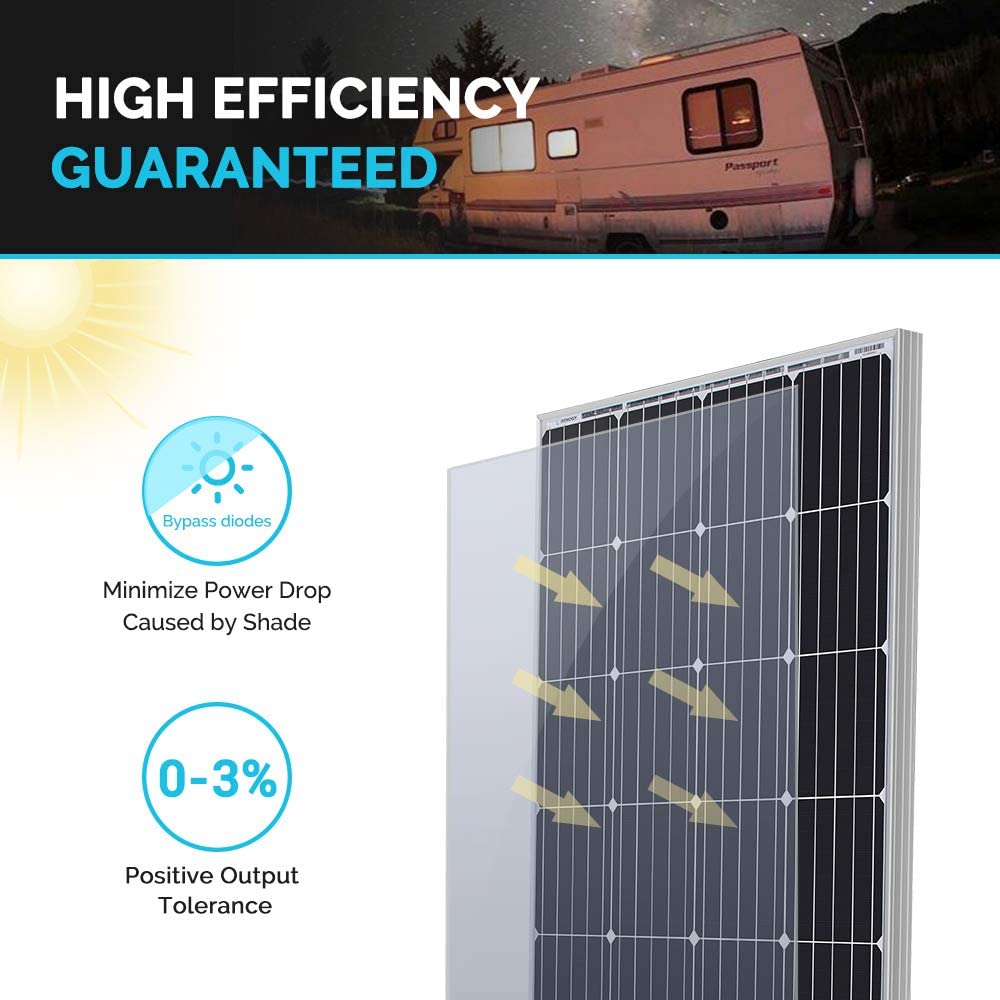

Weather Protection: The junction box features a weather-tight seal (IP65) and a built-in bypass diode, ensuring reliable performance during partial shading.
-

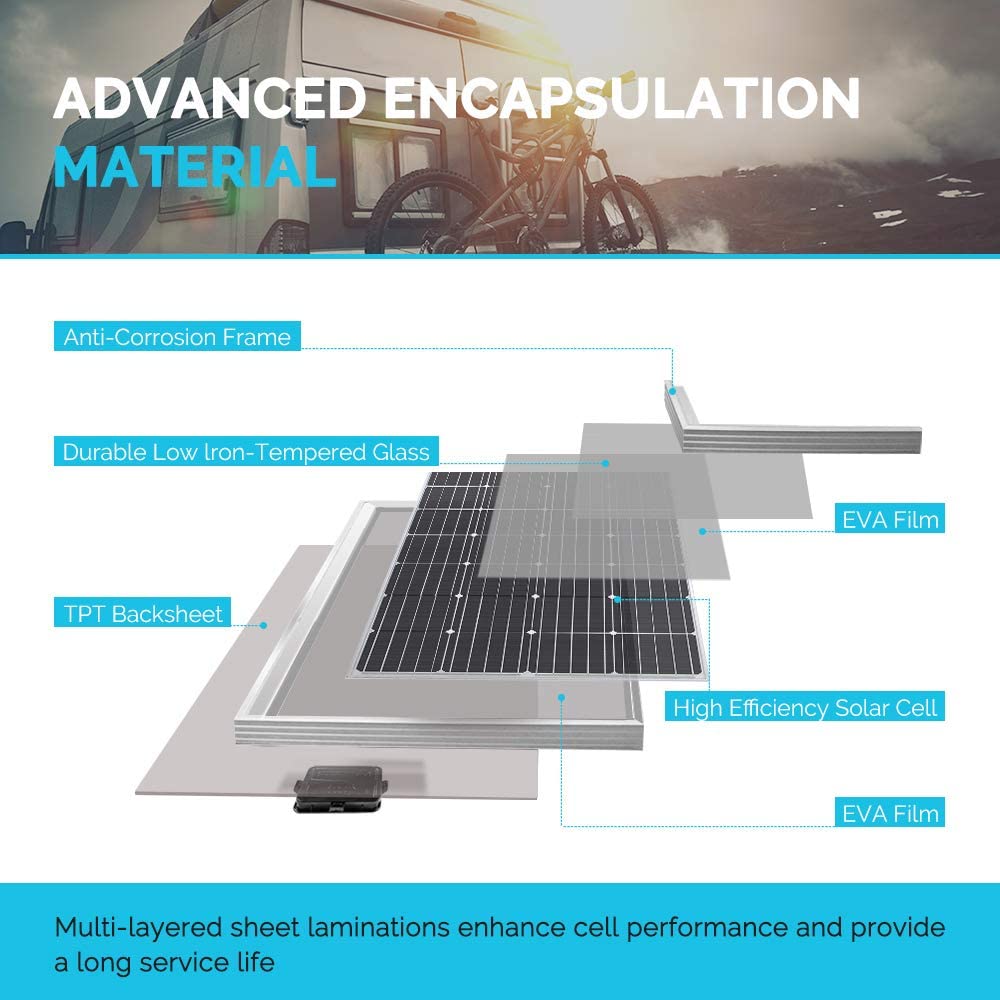

Robust Design: Constructed with heavy-duty aluminum framing and 3.2mm tempered glass for enhanced durability.
-

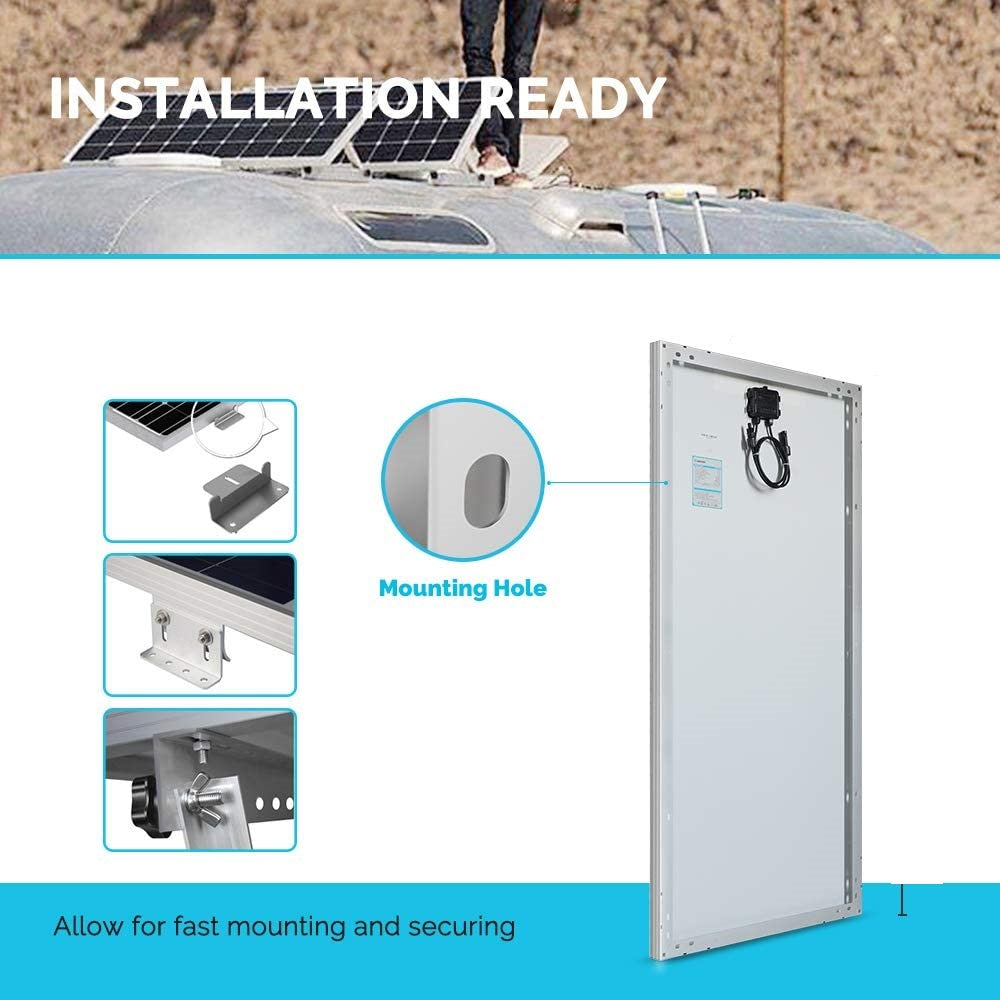

Easy Installation: Comes with 900mm cables with standard MC4 connectors for straightforward connection.
Specifications:
-
Power: 150W
-
Voltage: 12V to 18V
-
Open Circuit Voltage: 22.65V
-
Short Circuit Current (Isc): 9.06A
-
Rated Current (Imp): 8.36A
-
Cells: 36 cells (156 x 156mm each)
-
Dimensions: 1480 x 680 x 35 mm
-
Weight: 12 kg
-
Power Tolerance: ±3%
-
Cell Efficiency: 20.50%
-
Module Efficiency STC: 18.47%
-
Operating Temperature Range: -40°C to +85°C
-
Temperature Coefficient of Pmax: -0.435%/°C
-
Temperature Coefficient of Voc: -0.35%/°C
-
Temperature Coefficient of Isc: 0.043%/°C
-
Normal Operating Cell Temperature (NOCT): 47°C ± 2°C
-
Wind Load: 2400 Pascal
-
Snow Load: 5400 Pascal
-
Application Class: Class A
-
Fire Rating: Class C

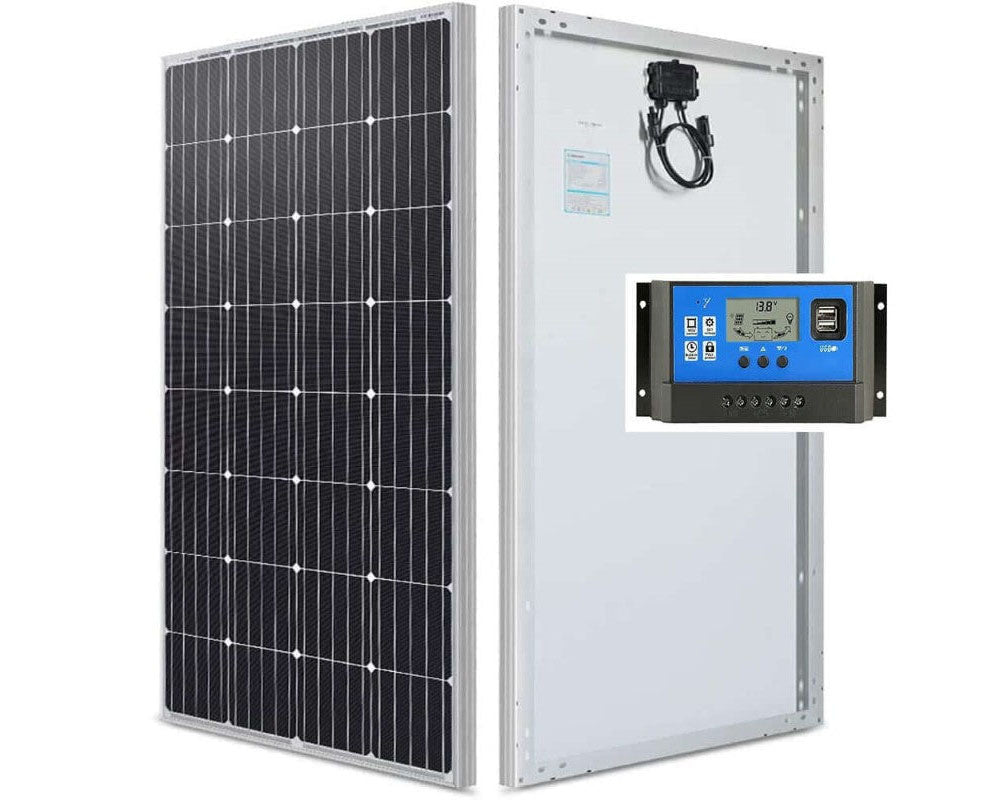

Packaging Includes:
- 1 x Solar Panel
- 1 x Solar controller
Applications: This solar panel is suitable for various uses, including:
- Home solar energy systems
- RVs and mobile homes
- Remote power generation
- Off-grid solar systems
Available Sizes: We also offer a range of solar panels, including 20W, 30W, 50W, 100W, 200W, 260W, 280W, and 320W. Please check our store for more options.
The 150W Monocrystalline Solar Panel combines efficiency, durability, and ease of installation, making it an excellent choice for harnessing solar energy effectively. Enjoy the benefits of renewable energy with a 10-year warranty for peace of mind!
