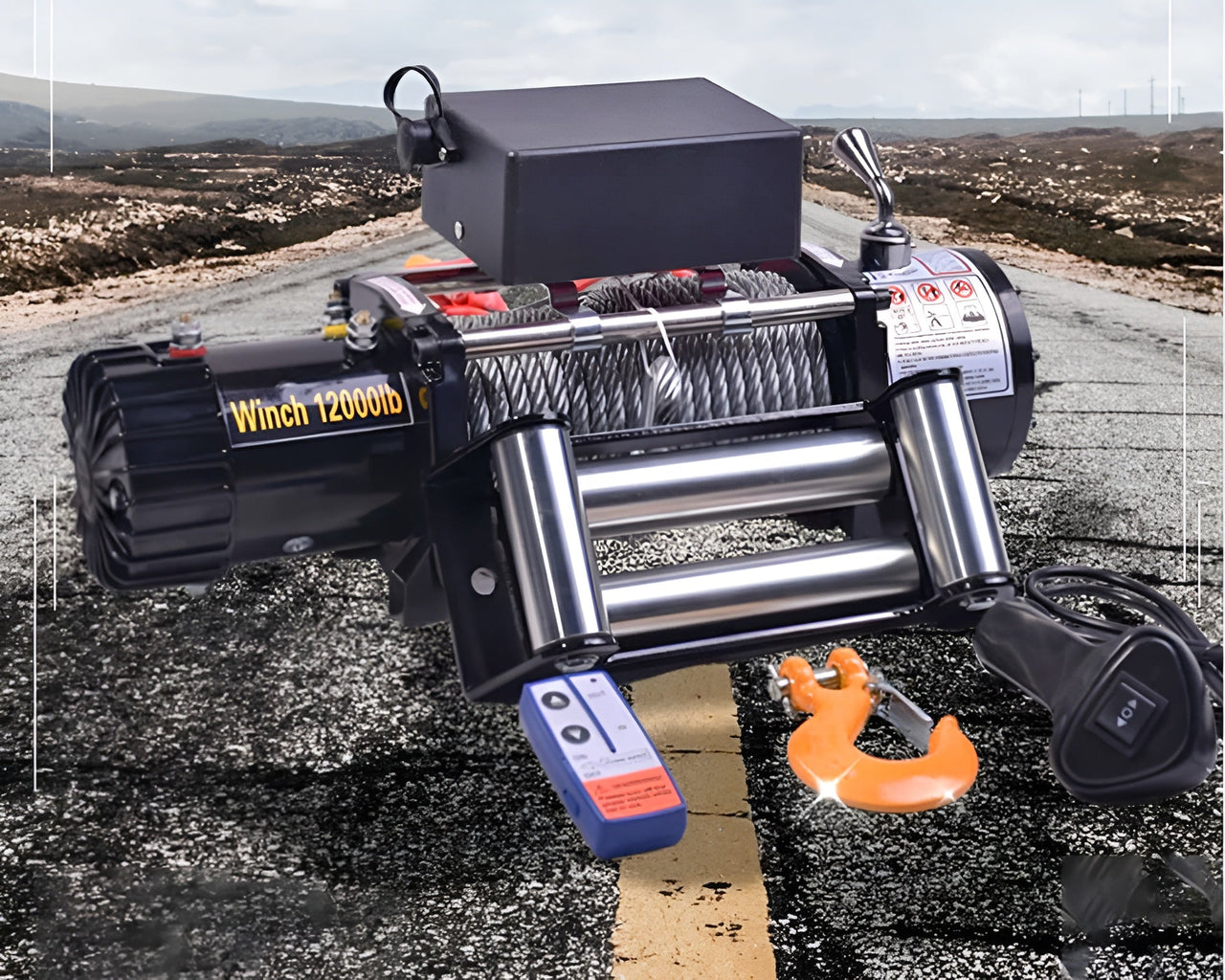

Electric Winch 12V DC, Steel Cable, Wired/Wireless Remote - 5445kg (12000lbs)

Electric Winch 12V DC, Steel Cable, Wired/Wireless Remote - 5445kg (12000lbs)

The Electric Winch offers high-performance and heavy-duty capabilities, with a powerful 12V DC motor and a steel cable that can handle up to 5445kg (12000lbs) of load. Designed for demanding tasks, this winch features both wired and wireless remote controls for ease of operation. Its rugged construction, planetary gear system, and automatic load-holding brake ensure smooth, reliable, and safe operation in challenging environments.

Features:

• Heavy-Duty Performance:
  This electric winch is built with the highest quality materials to deliver reliable performance and durability under heavy loads. Perfect for off-road vehicles, trucks, trailers, or any application requiring powerful winching capabilities.

• Synthetic Cable:
  The winch comes with a synthetic cable for lighter weight and higher strength, though it's also available with steel cable for tough, long-lasting use.

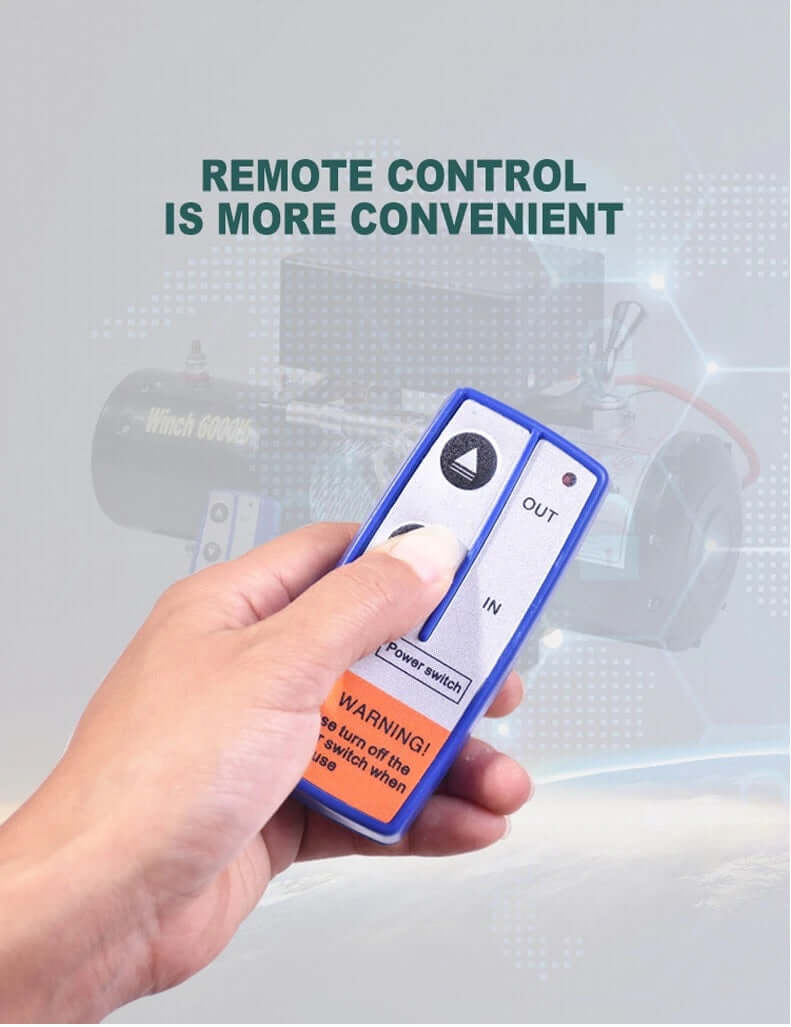

• Wired/Wireless Remote Control:
  The winch comes with both wired and wireless remote controls, giving you flexibility and convenience in controlling the winch from a safe distance.

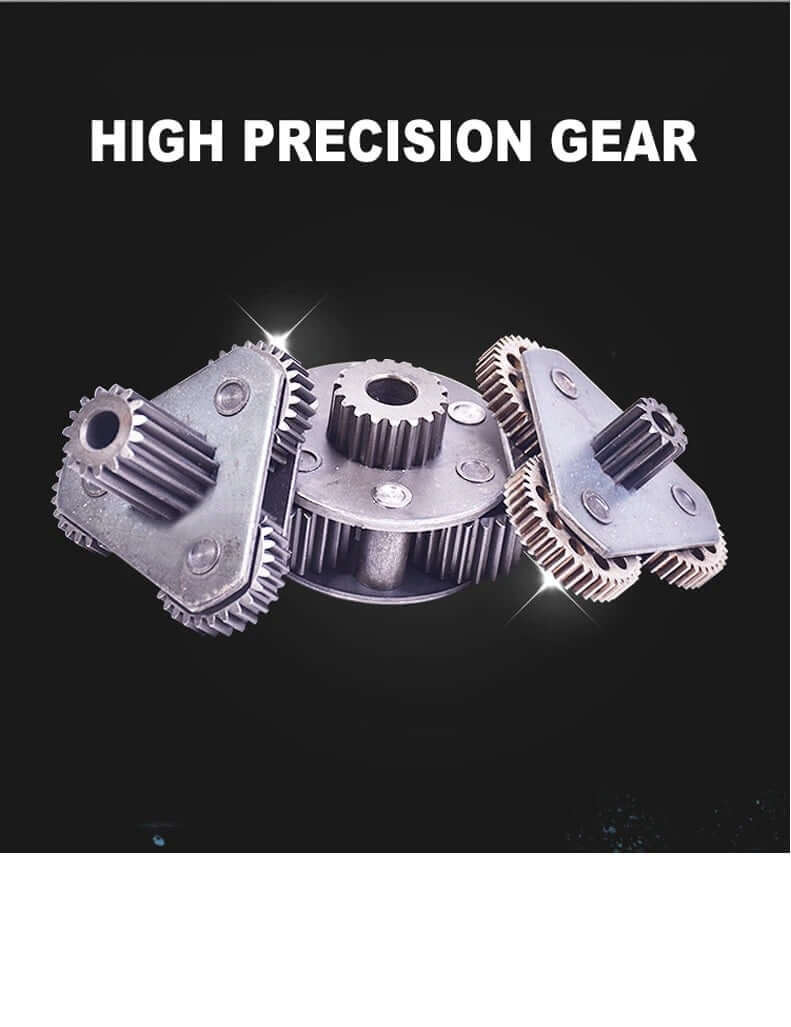

• Planetary Gear System:
  With a planetary gear system, this winch offers fast line speed and smooth operation, ensuring a quick and efficient winching process.

• Automatic Load Holding Brake:
  The automatic load-holding brake keeps the winch cable securely in place, preventing slippage or uncontrolled movement during operation.

• Free Spooling & Power In/Out:
  Allows for fast line out and controlled retrieval. Free spooling enables fast and easy cable deployment when needed.

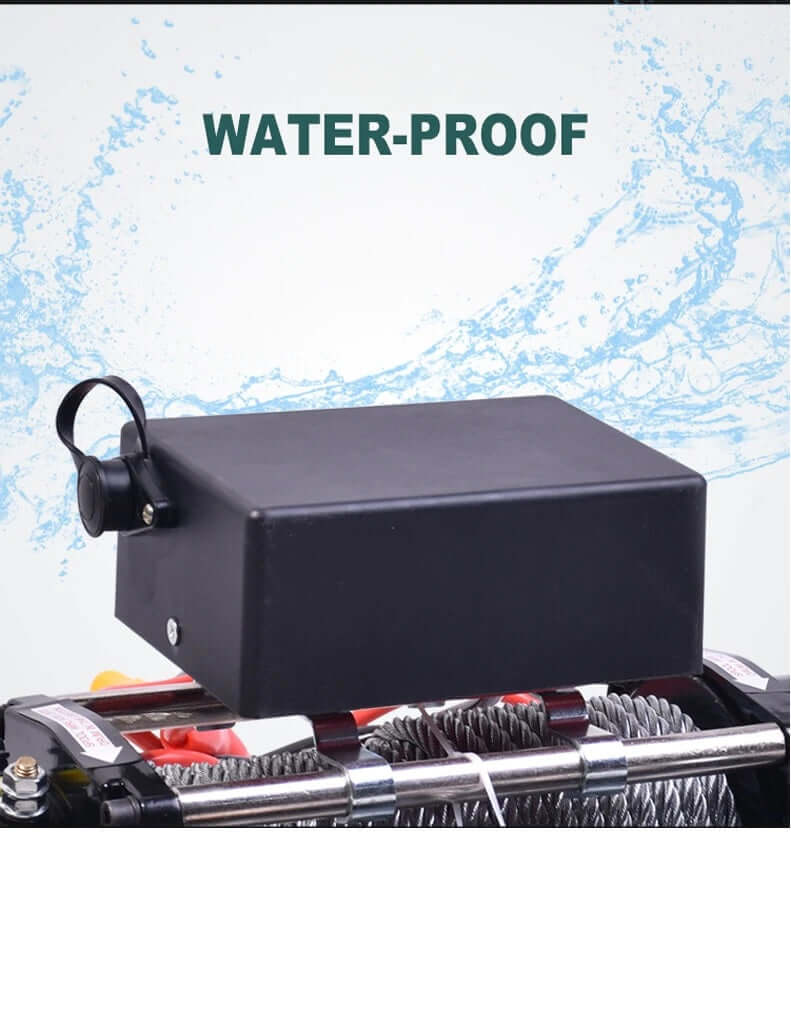

• IP67 Rating:
  This electric winch has an IP67 rating, meaning it is protected from immersion in water up to 1 meter (3.3 feet) for up to 30 minutes, making it ideal for use in wet or harsh conditions.

• Low Electric Current Draw:
  The electric winch features a low electric current draw, ensuring energy efficiency while still providing maximum strength.

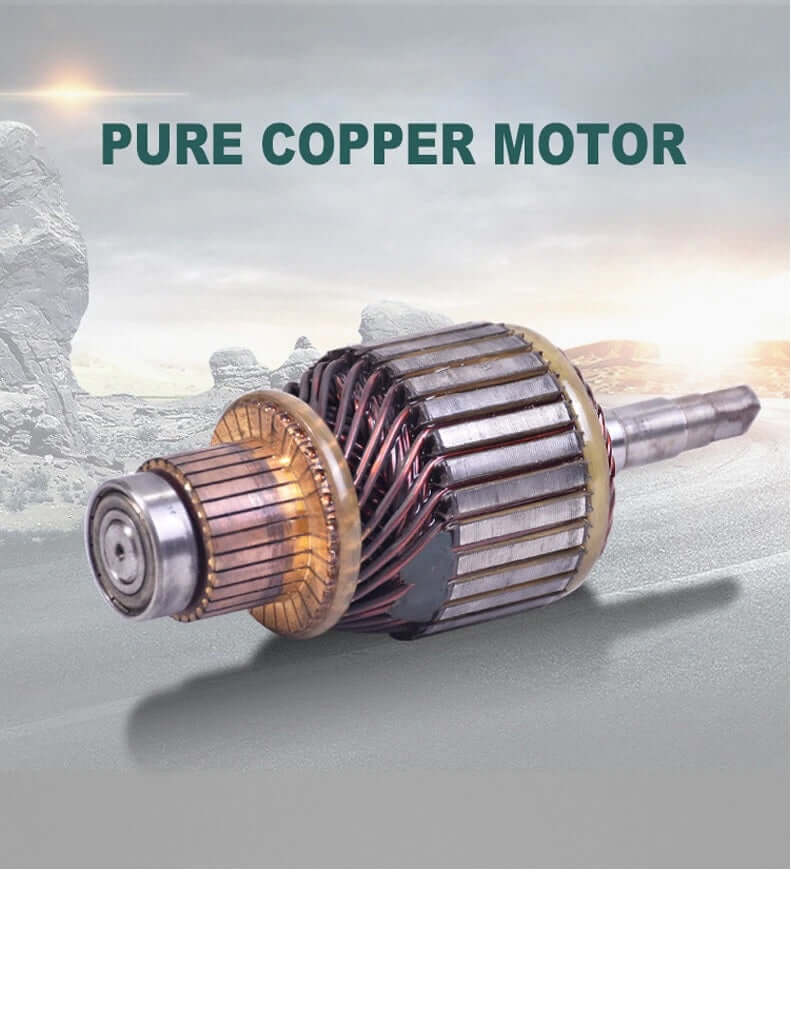

• Hardened Gears & Permanent Magnetic DC Motors:
  Equipped with hardened gears and heavy-duty permanent magnetic DC motors, this winch is built to withstand high loads and offer long-term reliability.

• Individual Load Testing:
  Each winch undergoes individual load testing before being packed and shipped, ensuring quality control and performance consistency.

Specifications:

• Model: RES12000-WLW
• Rated Line Pull: 5445kg (12000lbs) Single Line
• Motor Type: Permanent Magnet
• Voltage: 12 Volts DC
• Input Power: 4.9HP (3.6kw)
• Max. Motor Current: 320Amp
• Remote: Wired and Wireless
• Gear Ratio: 294:1
• Gear Train: 3-Stage Planetary
• Brake: Automatic Load-Holding Brake
• Power Out: Yes
• Power In: Yes
• Free Spooling: Yes
• Drum Diameter: 67mm
• Drum Width: 222mm
• Line Speed: 1.5m/min with Max. Line Pull
• Rope Material: Steel Cable
• Rope Diameter & Length: 9.5mm x 28m
• Hook: 9.5mm (3/8”) with Safety Catch
• Fairlead: Roller
• Width Dimension: 540(L) x 161(H) x 217(D)mm
• Mounting Bolt Pattern: 254 x 114.3mm
• IP Rating: IP67
• Weight (NW): 37.2kg

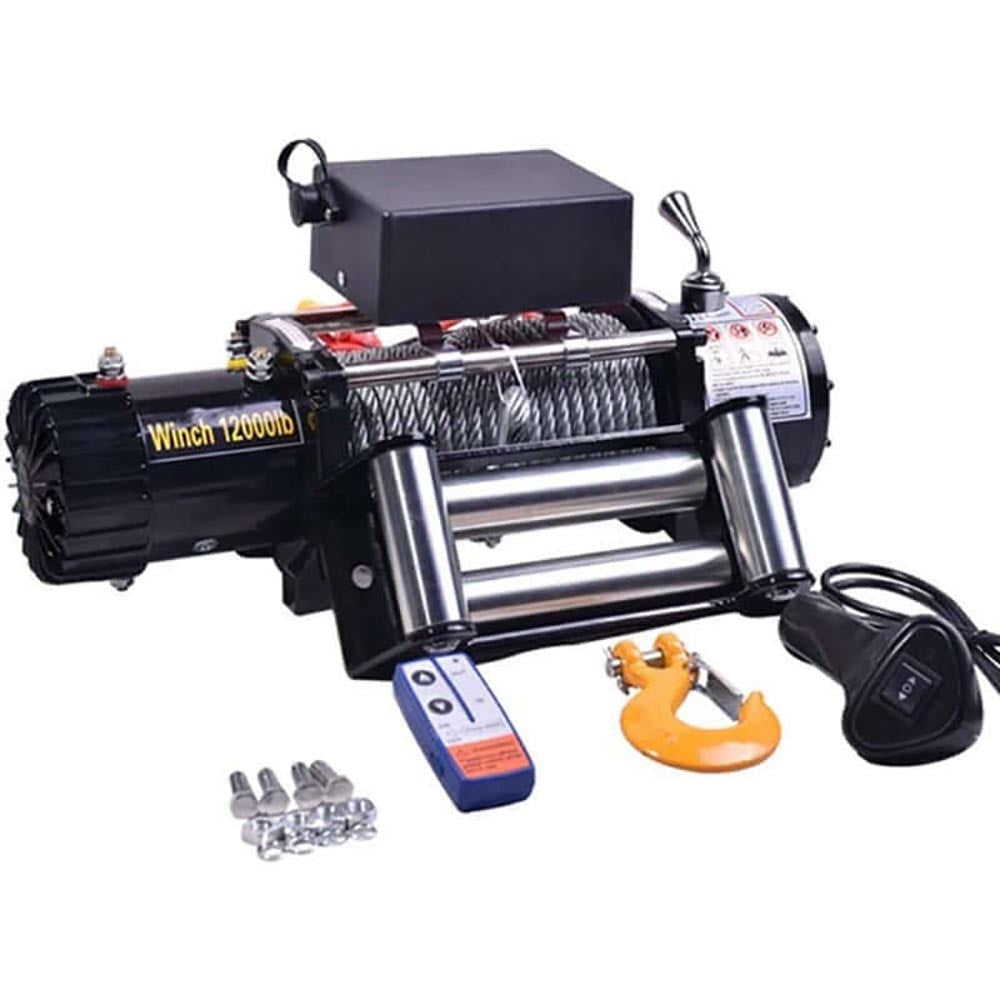

Package Includes:

• 1 x Electric Winch 12000lbs
• 1 x Wired Remote
• 1 x Wireless Remote
• 1 x Steel Cable (28 meters)
• 1 x Safety Hook
• 1 x Roller Fairlead
• 1 x Mounting Accessories
• 1 x User Manual
